Aluminum alloy biological liquid nitrogen storage tank

1.Highly vacuumed multi-circle insulate can provide guarantees no less than 8 years.
2.The material are made of quality Aluminum Alloy,which are imported.
3.The product"s shell is formed by spinning technology,because this technology is less weld and beautiful nature.
Send a E-mail to us!
Get Quotes

Products

  • Air Separation Unit
  • CO2 Recovery Plant
  • Cryogenic Storage Tanks
  • Flat Bottom Storage Tank
  • ISO Tank Container
  • LNG Marine Tank
  • Semi Trailer Tank
  • LPG Storage Tank
  • LNG Filling Station
  • LNG Filling Skid
  • Dewar Cylinder
  • Cryogenic Pump
  • Vaporizer
  • PSA System
  • Industrial Gas Cylinder
contact us
If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. thanks for your support.

Tel: +86-373-2677103
Fax: +86-373-2677103
WhatsApp: +86-17638186581
E-mail: sale@cncdcontainer.com
Address: Fengquan Industrial Zone, Xinxiang city, Henan Province China

  • Related products
  • Description
  • Inquiry
Related products
  • Cryogenic Liquid Nitrogen Storage Tank
    Cryogenic Liquid Nitrogen Storage Tank
  • PSA Oxygen Generator
    PSA Oxygen Generator
  • 100m3 high pressure cabon steel cryogenic CO2 tank for industrial
    100m3 high pressure cabon steel cryogenic CO2 tank for industrial
Description

Liquid nitrogen tank

Cryogenic Storage Tank



Product Description:
Along with the advance of human society and development of technology,the technology of highly vacuumed multi-circle insulation has been solved the leak of heat which by reason of heat convection,conduction,radiation,appears at the early of 1950’s,since England scientist dewar invebted the principle of vacuum jasketed in 1898.we adopt highly vacuumed multi-circle insulation technology to produce the biological liquid nitrogen containers,which have good performance of low temperature insulation,and the evaporation can be let down to minimum,so the containers can be widely used of farming,medical treatment,scientific research,machine manufacture and other areas.in these ares liquid nitrogen can be used as cryogen to store the animal’s semen,vaccine,toadstool,other biology samples,cold metal and precision parts cryogenic assembly and so on.
Purpose of Products:
1.Animal semen preservation activity.For the present,it mainly used to store superior male cattle”s and rare animal’s semen, such as ox ,sheep ,panda ,it also can be used for long-distance transport.
2.The preservation of biological samples activity . The vaccine , bacteria and viruses, cell’s ,hunman’s and animal’s organ can be steeped in liquid nitrogen ,in order to preserve long-time viability .you can thaw and rewarm them when you use them.
3.Deep cold metal. The preserved liquid nitrogen can change microstructure so as to ignificantly enhance the hardness,strength,weaability and wear performance.
4.Precision Parts cryogenic assembly .The precision parts quality and overall performance of equipment can be improved after deep cold arranged by liquid
Nitrogen.
Introduction of the quality:
The existing national standard is GB/T5458-1997 “Biological Liquid Nitrogen Containers”.The standard is put by Department of Agriculture,drafted by National Quality Supervision and Inspection Center of Cryogenic vessels,and released implementation by National Technical Supervision Bureau.
In order to meet internal user’s demands our company has been made the best of the advanced technology effectiveness and the quality is improved quickly,since the company established.
Our products have substantially improved based on the national standards in biological liquid nitrogen containers performance parameters,technical quality indicators and static liquid nitrogen retetion reriod,In addition,our quality indicators has been closed to reach European Countries and the US in similar quality of products.
Bological Liquid Nitrogen Storage Containers:
The prouducts are widely used for storing sperm,embryo storage,human organ
And various vaccine storage,this kind of containers has many advantages,such as long-time storage,nature,low cost and long-distance transport.



Poduct Characteristics:

1.Highly vacuumed multi-circle insulate can provide guarantees no less than 8 years.
2.The material are made of quality Aluminum Alloy,which are imported.
3.The product"s shell is formed by spinning technology,because this technology is less weld and beautiful nature.
4.According to user"s demends we can arrange protective covers so as to ersure the safety of biological samples.
5.There are numbered bin which convenient for facilitating identification and independent accessing.

Product parameter table:



liquid  nitrogen  storage tanks
Model Volume(L) Neck(mm) Diameter(mm) Height(mm) Empty weight(kg) Store Time for static liquid nitrogen(day)
Passed excellence
YDS-2-30 2.3 30 224 420 2.9 30 35
YDS-3 3.3 50 224 450 3.1 28 35

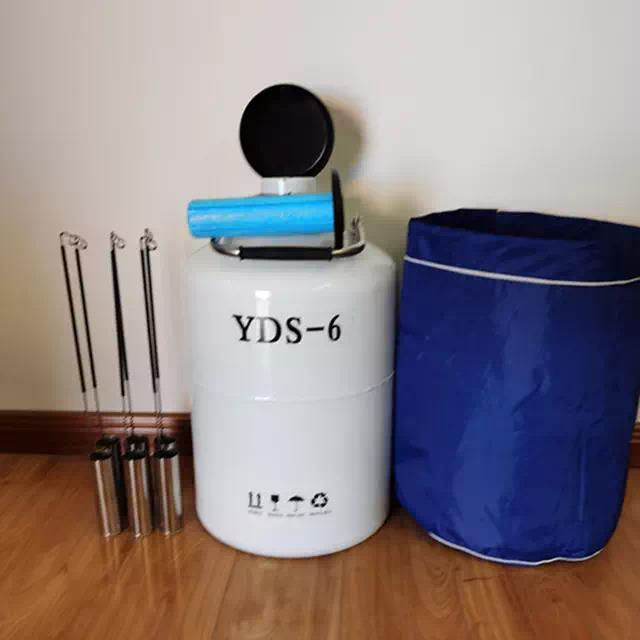

YDS-6 6.5 50 304 500 4.5 53 65
YDS-10 10.6 50 304 570 5.7 86 105

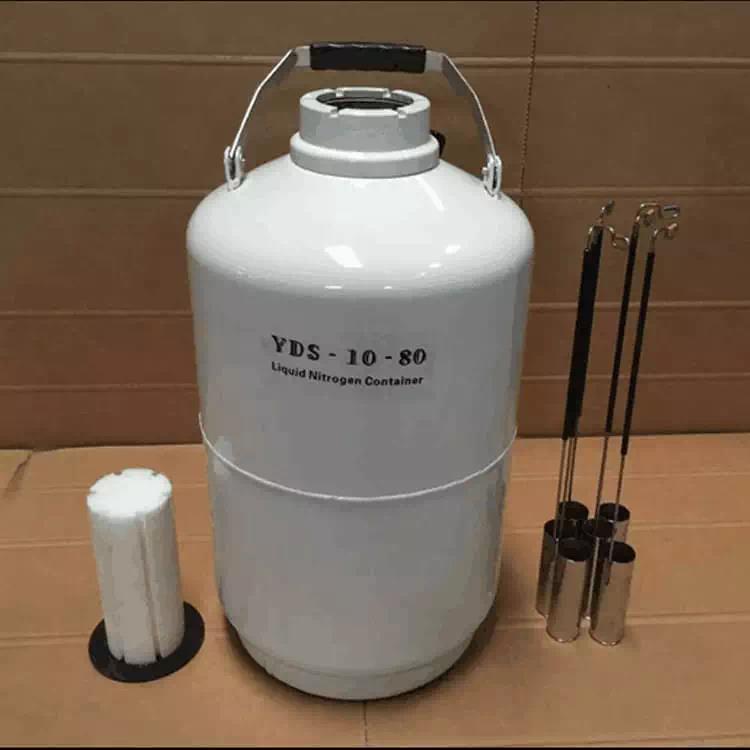

YDS-10-80 10.2 80 304 560 5.9 50 59
YDS-10-125 10 125 304 560 6.3 26 33
YDS-10-210 10 210 304 520 7.6 10 15

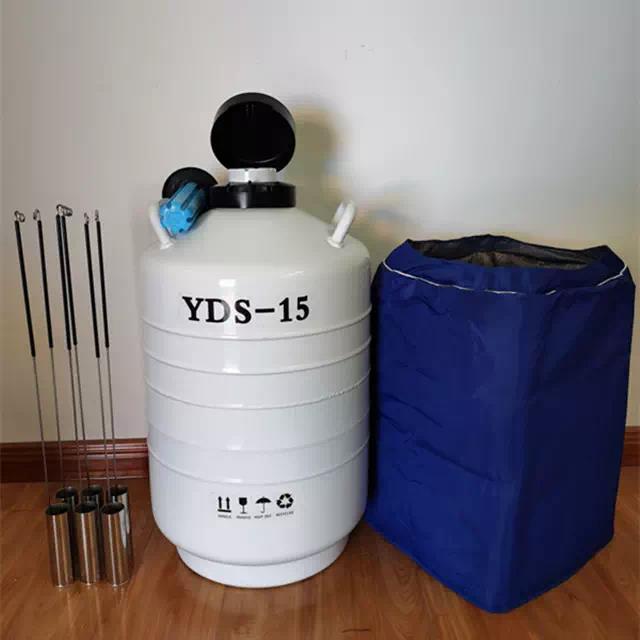

YDS-15 16.5 50 384 640 7.2 135 162
YDS-16-54 17 54 438 490 8.6 145 168
YDS-20 21.6 50 386 640 10.4 172 215
YDS-30 32.9 50 438 700 13.4 255 300
YDS-30-80 32 80 438 700 14.2 148 176
YDS-30-125 31 125 438 680 14.2 90 113
YDS-30-210 30 210 438 660 14.9 40 50
YDS-35 37.2 50 438 730 14.1 275 330
YDS-35-80 37 80 438 720 14.2 160 190
YDS-35-125 36 125 438 700 15 98 126
YDS-35-210 35 210 438 680 15.8 50 60
liquid nitrogen transportation tanks
YDS-30B 32.9 50 438 700 13.8 160 195
YDS-30B-80 32 80 438 690 19.9 106 135
YDS-35B 37.2 50 438 730 14.2 180 218
YDS-35B-125 36 125 438 710 14.6 80 95
YDS-50B 50 50 476 890 20.4 205 255
YDS-50B-80 50 80 476 880 20.5 148 190
YDS-50B-125 50 125 476 860 20.9 112 135
YDS-50B-210 50 210 476 840 21.7 59 82
YDS-60B-210 65 210 516 790 23.3 65 75
YDS-100B-210 110 210 606 970 34.2 130 160
