Air Sparation System

Product Description:

      air separation plant operates on a low pressure cycle and is used to produce pure oxygen and nitrogen from air by means of cryogenic rectification. The feed air is first liquefied by the refrigeration produced by turbo-expander and then rectified for two times on the basis of the different boiling points between liquid oxygen and liquid nitrogen. As a result, oxygen at a purity of over 99.6% and nitrogen at a purity of over 99.99% can be obtained from the plant. If required, the plant can also produce liquid oxygen and liquid nitrogen partially by means of modified operation.

Product advantages:

1. The patented technology is mature and the process is optimized.

2. The operation is stable and simple.

3. Low operating energy consumption.

4. Perfect for large oxygen-rich gas users.

5. Excellent pre- and after-sales services.

Send a E-mail to us!
Get Quotes

Products

  • Air Separation Unit
  • CO2 Recovery Plant
  • Cryogenic Storage Tanks
  • Flat Bottom Storage Tank
  • ISO Tank Container
  • LNG Marine Tank
  • Semi Trailer Tank
  • LPG Storage Tank
  • LNG Filling Station
  • LNG Filling Skid
  • Dewar Cylinder
  • Cryogenic Pump
  • Vaporizer
  • PSA System
  • Industrial Gas Cylinder
contact us
If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. thanks for your support.

Tel: +86-373-2677103
Fax: +86-373-2677103
WhatsApp: +86-17638186581
E-mail: sale@cncdtank-china.com
Address: Fengquan Industrial Zone, Xinxiang city, Henan Province China

  • Related products
  • Description
  • Inquiry
Related products
  • Cryogenic Liquid Oxygen Storage Tank
    Cryogenic Liquid Oxygen Storage Tank
  • LPG Gas Propane Semi Trailer
    LPG Gas Propane Semi Trailer
  • PSA Oxygen Generator
    PSA Oxygen Generator
Description

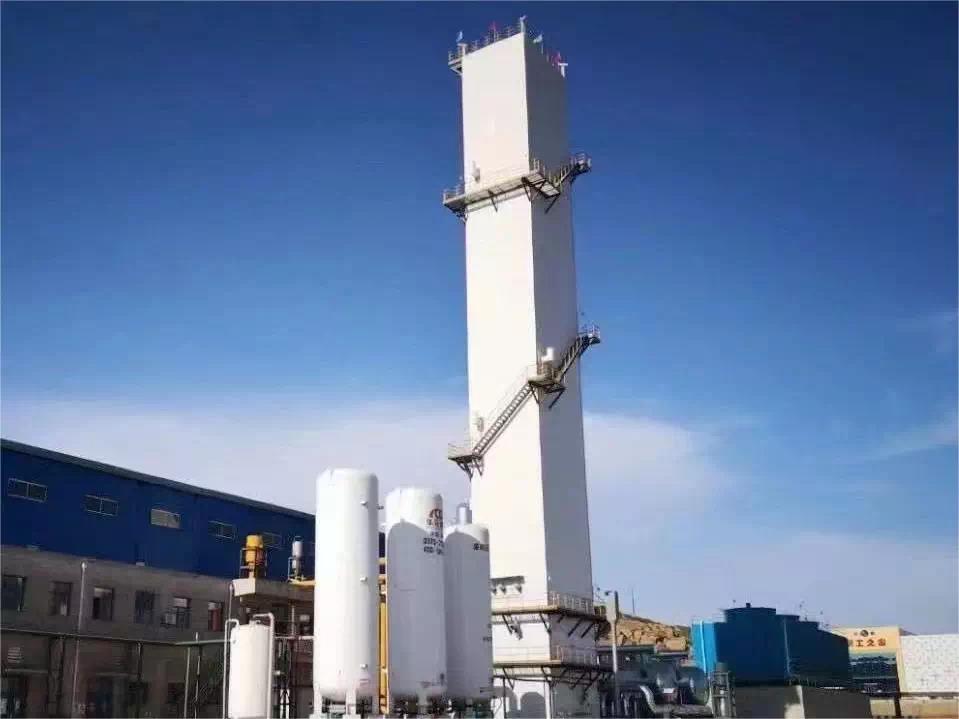

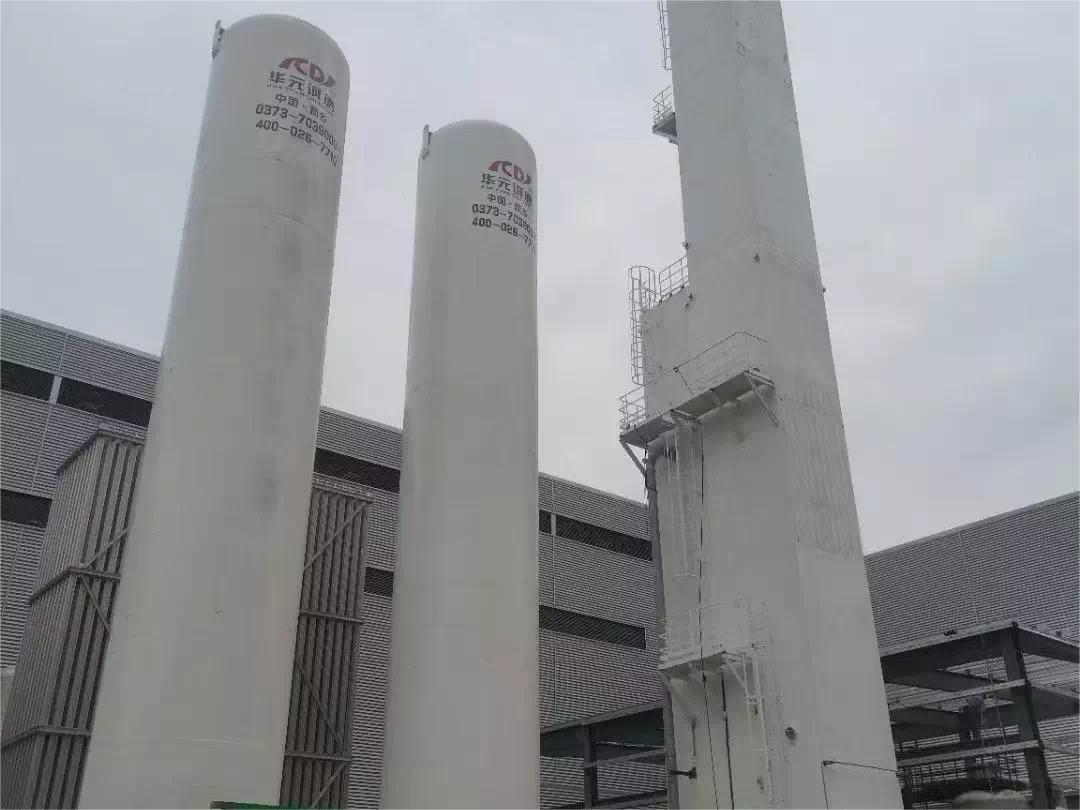

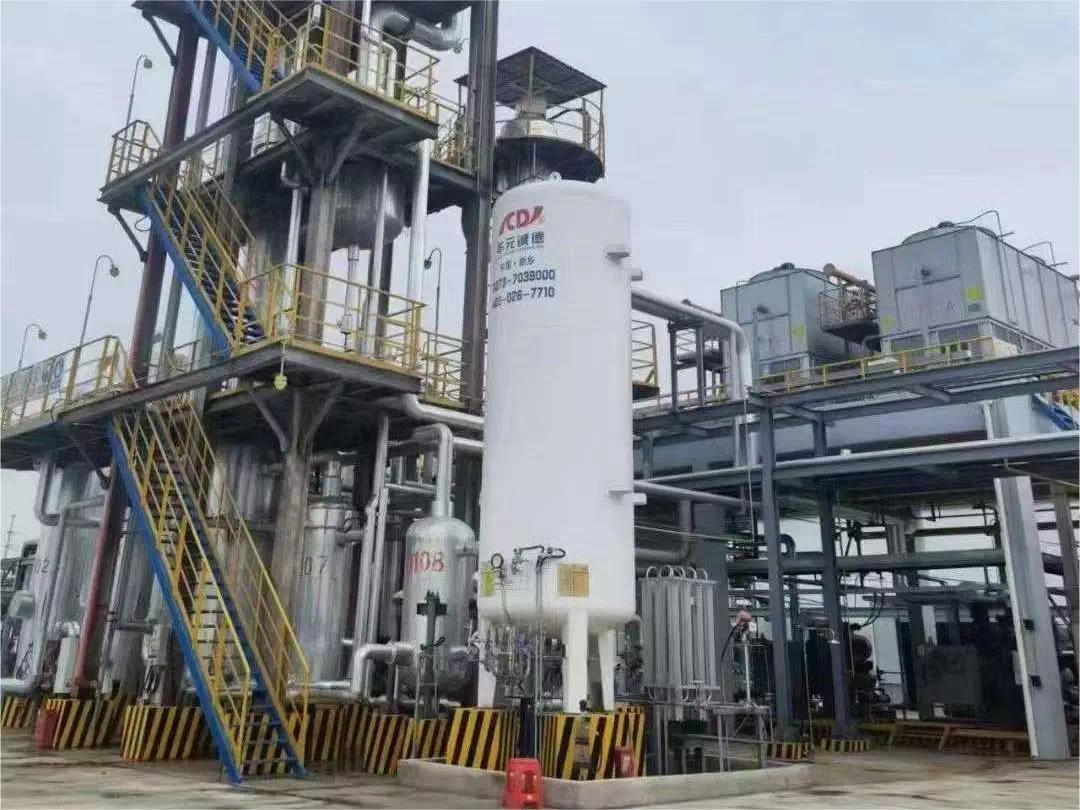

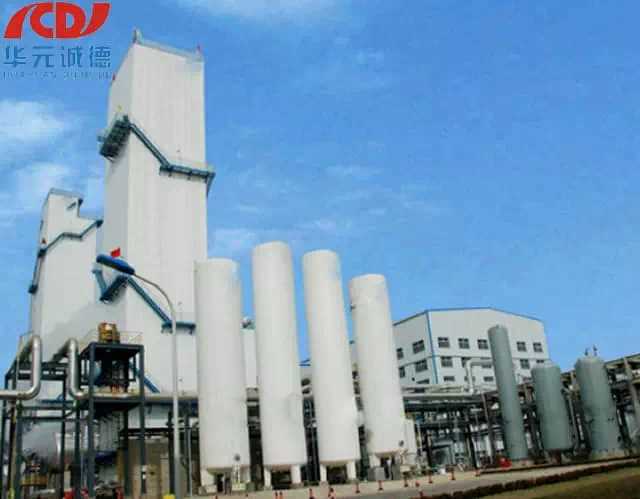

Cryogenic liquid air separation unit

Product Description::

air separation plant operates on a low pressure cycle and is used to produce pure oxygen and nitrogen from air by means of cryogenic rectification. The feed air is first liquefied by the refrigeration produced by turbo-expander and then rectified for two times on the basis of the different boiling points between liquid oxygen and liquid nitrogen. As a result, oxygen at a purity of over 99.6% and nitrogen at a purity of over 99.99% can be obtained from the plant. If required, the plant can also produce liquid oxygen and liquid nitrogen partially by means of modified operation.



Product advantages:

1. The patented technology is mature and the process is optimized. 2. The operation is stable and simple. 3. Low operating energy consumption. 4. Perfect for large oxygen-rich gas users. 5. Excellent pre- and after-sales services.



Technical Parameter:

Model



O2 Nm3h/Purity%



N2 Nm3h/Purity%



Working Period



KDON-50/100

50/99.6%

100/<10ppmO2

6 months

KDON-100/200

100/99.6%

200/<10ppmO2

6 months

KDON-150/600

150/99.6%

600/<10ppmO2

6 months

KDON-170/400

170/99.6%

400/<10ppmO2

6 months

KDON-350/800

350/99.6%

800/<10ppmO2

6 months

KDON-550/1200

550/99.6%

1200/<10ppmO2

12 months

KDON-1000/1000

1000/99.6%

1000/<10ppmO2

12 months

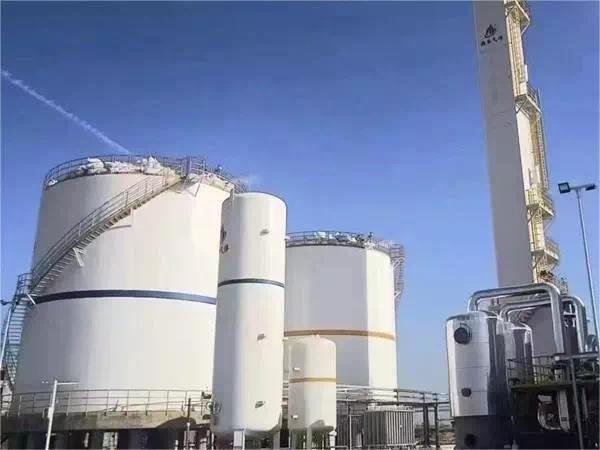

Cryogenic Storage Tank

Field Installation:

Our company have the design and installation qualification of GB1, GC2 and GC3 pressure pipeline which can supply customers with professional pressure pipeline solutions.

Pressure pipeline design,installation in spection, certification, transformation, maintenance one-stop service fast, professional,

efficient and safe to solves problems, ask user rest assured, relax and comfortable.
