Product Description

This series of products belong to the first, second and third class of pressure vessel production.Its design ,manufacturing, inspection and acceptance examination are strictly under the accordance with Steel Pressure Vessel, GB150; Cryogenic Adiabatice Pressure Vessel Gb18442 and Pressure Vessels Safety and Technical Supervision Regulation.

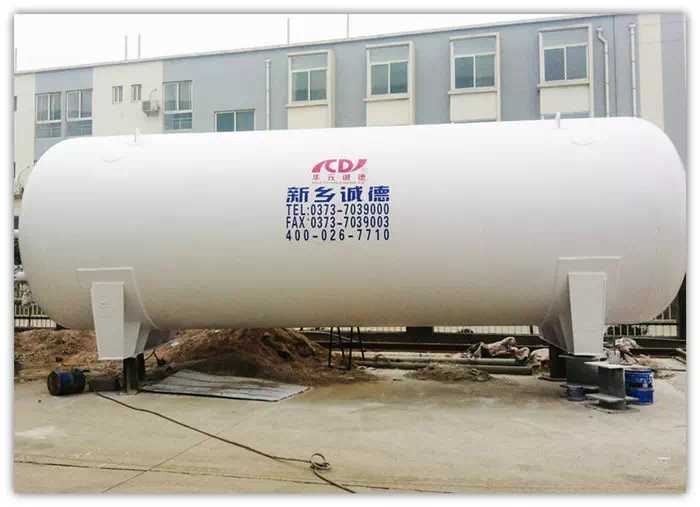

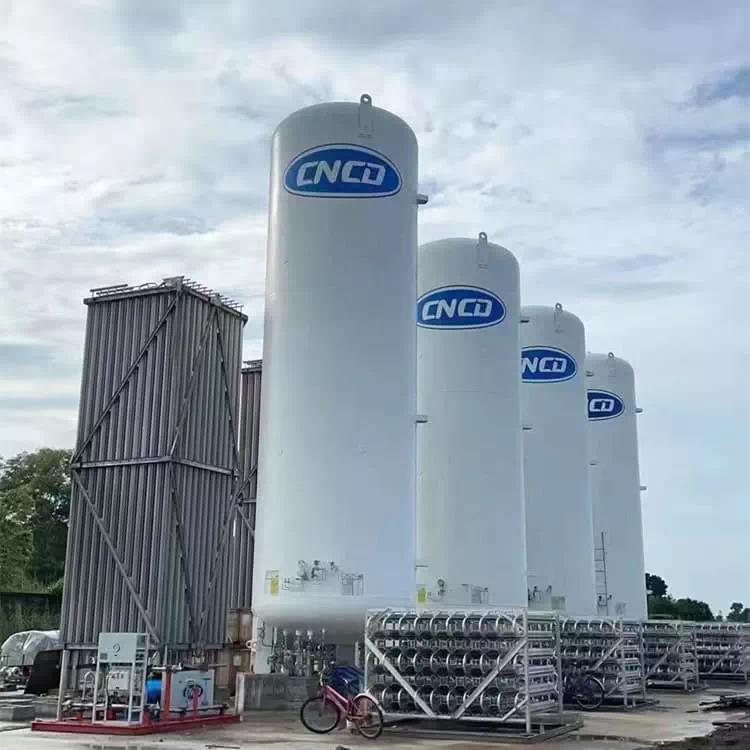

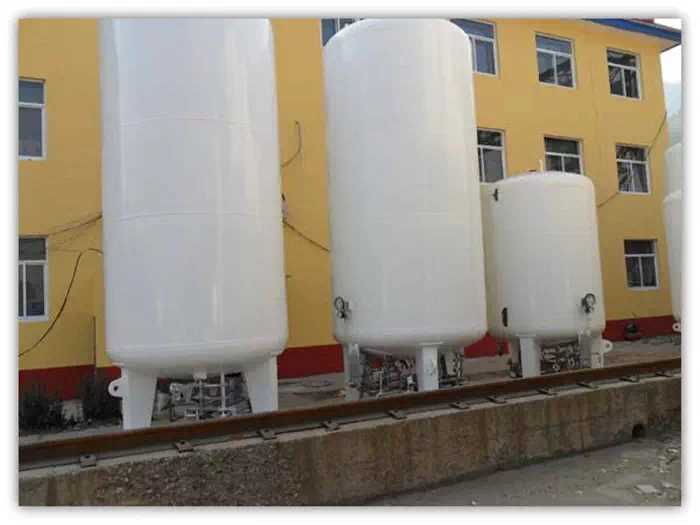

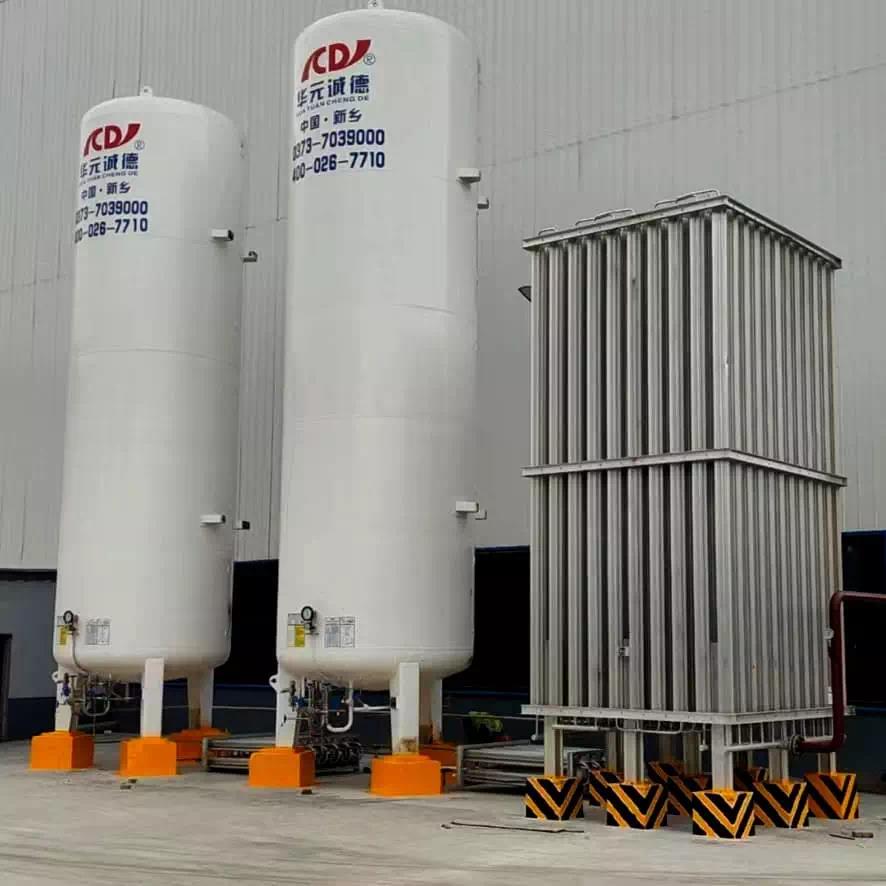

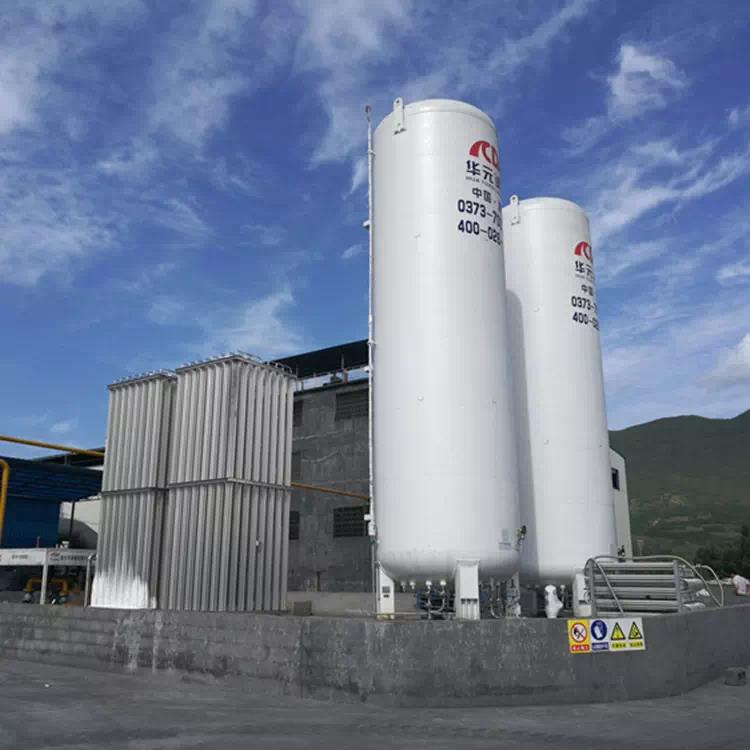

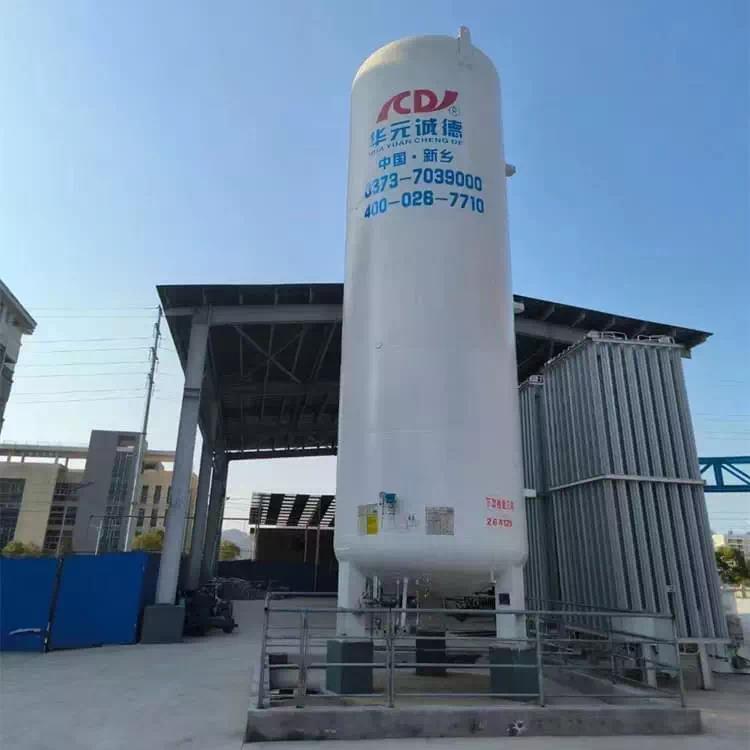

The cryogenic liquid storage products includes double layer, with both vertical and horizontal structure and evacuated powder insulation, featuring a compact structure, small size, low daily vaporizing rate, and central controlling. They are reliable and easy to operate and maintain.



Main technical parameter:

1	Available max. volume	150m3
2	working pressure	8bar,16bar
3	Min Design temperature	-196°C
4	Max Design temperature	+50 °C
5	Total Volume	157.8m3
6	Effective volume	150m3
7	Filling Ratio	0.95
8	Inner tank Material	0Cr18Ni9
9	Outside tank Material	Q245R
10	Diameter	3720mm
11	Length	22280mm
12	Empty weight	~59345kg
13	Suitable	LIN, LOX, LAr,LNG
14	Insulation method	vacuum powder or high vacuum multi-layer wrap insulation
15	Medium	liquid argon/ nature gas/ oxygen/nitrogen/ethylene

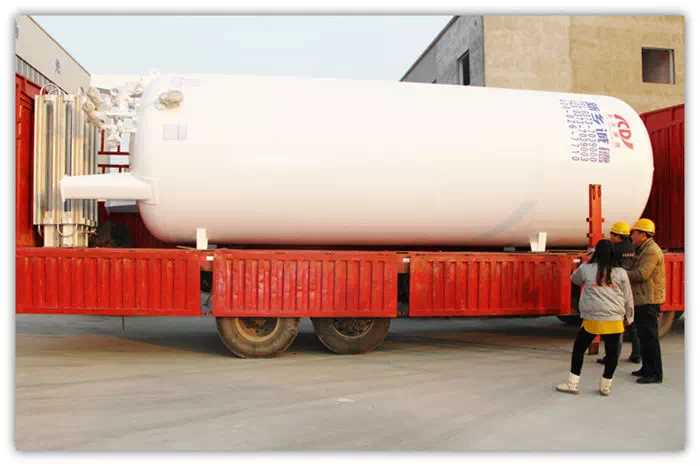

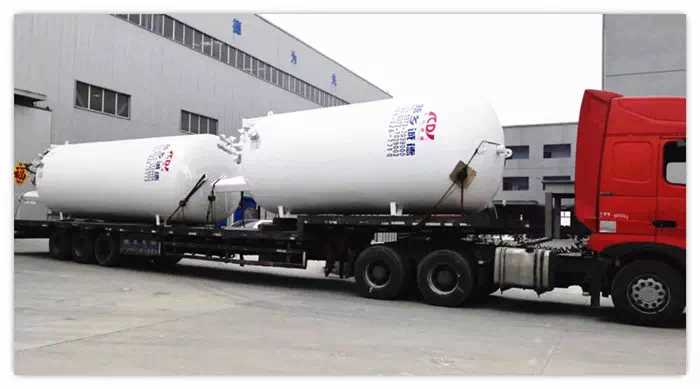

Packaging & Shipping

Packaging Detail: standard export package

Delivery Detail: 60 days after advance payment
