5m³ Liquid CO2 Storage Tank with Long Lifespan

Thechnical Summary:
1. Can provide different code based on user requirement: GB/ ASME/CE certificate
2. Can be horizental or Vertical based on jobsite condition
3. Can special design based on stationary tank or movable tank or skid based on user funtion
4. Vacuum guarantee: 3 years
5. Complet equipment guarantee: one year


TAG:  CNCD
Send a E-mail to us!
Get Quotes

Products

  • Air Separation Unit
  • CO2 Recovery Plant
  • Cryogenic Storage Tanks
  • Flat Bottom Storage Tank
  • ISO Tank Container
  • LNG Marine Tank
  • Semi Trailer Tank
  • LPG Storage Tank
  • LNG Filling Station
  • LNG Filling Skid
  • Dewar Cylinder
  • Cryogenic Pump
  • Vaporizer
  • PSA System
  • Industrial Gas Cylinder
contact us
If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. thanks for your support.

Tel: +86-373-2677103
Fax: +86-373-2677103
WhatsApp: +86-17638186581
E-mail: sale@cncdtank-china.com
Address: Fengquan Industrial Zone, Xinxiang city, Henan Province China

  • Related products
  • Description
  • Inquiry
Related products
  • 40m3  vertical liquid nitrogen /oxygen/argon tank, pressure vessel
    40m3 vertical liquid nitrogen /oxygen/argon tank, pressure vessel
  • 50m3 stainless steel cryogenic ethylene storage tank
    50m3 stainless steel cryogenic ethylene storage tank
Description
Product Description
Liquid carbon dioxide storage can be classified into polyurethane foaming insulation tank and vacuum powder adiabatic tank, with a designed working temperature of minus 40°.its main material can be 0Cr18Ni9 or 16MnDR.
This series of products , featuring a compact structure, can be applied in metallurgy, chemistry, food industry, and fire protection, etc. They are reliable, easy too perate and maintain

Main technical parameter:

1 Available max. volume 5m3
2 working pressure 2.16Mpa
3 Design temperature -40°C
4 Design  pressure 2.27Mpa
5 Total Volume 5.3 m3
6 Effective volume 5m3
7 Filling Ratio 0.95
8 Inner tank Material 16MnDR
9 Outside tank Material Q245R
10 Diameter 2000mm
11 Length 4250mm
12 Empty weight 6500kg
13 Suitable  Lco2
14 Insulation method vacuum powder or polyurethane insulation
15 Medium Liquid carbon dioxide

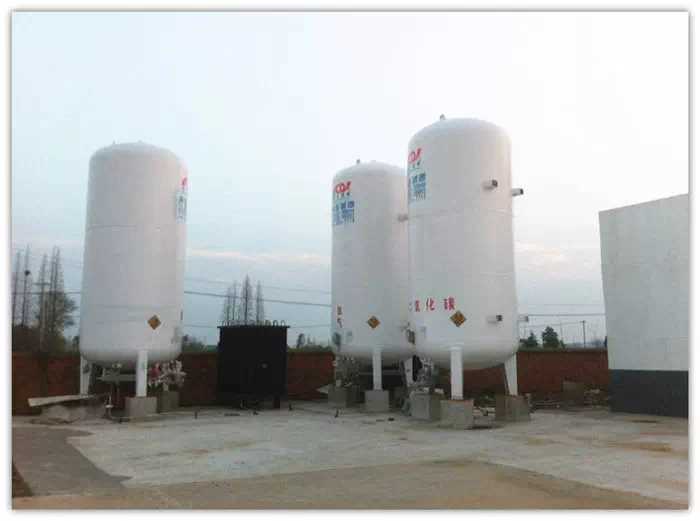

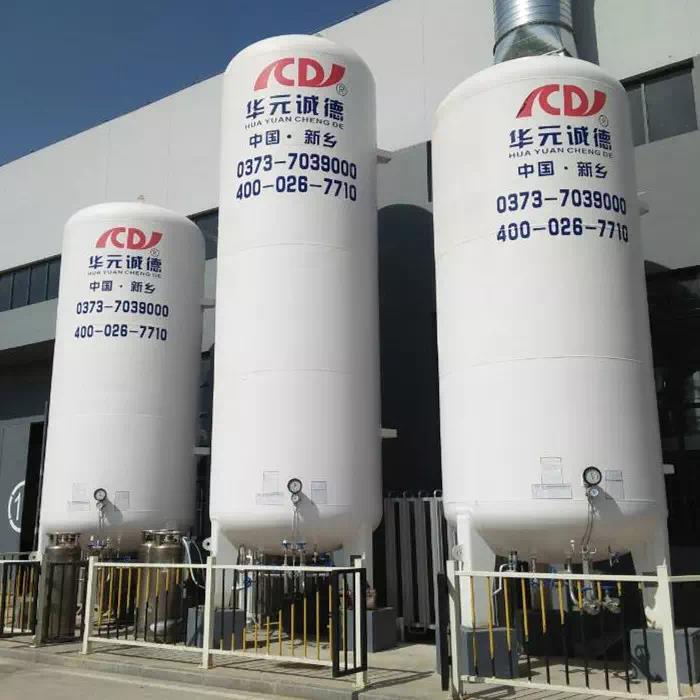

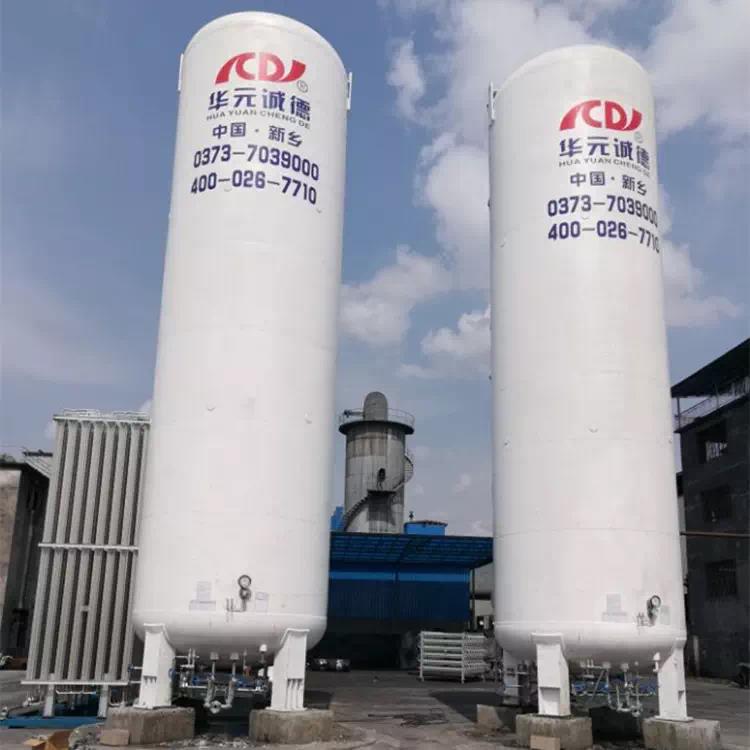

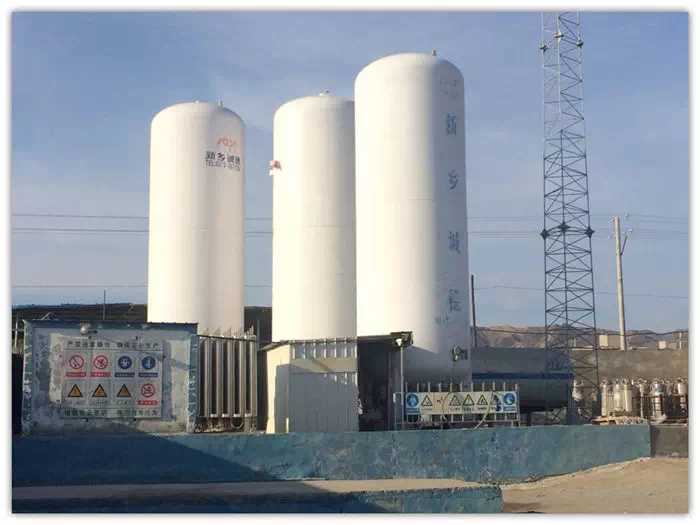

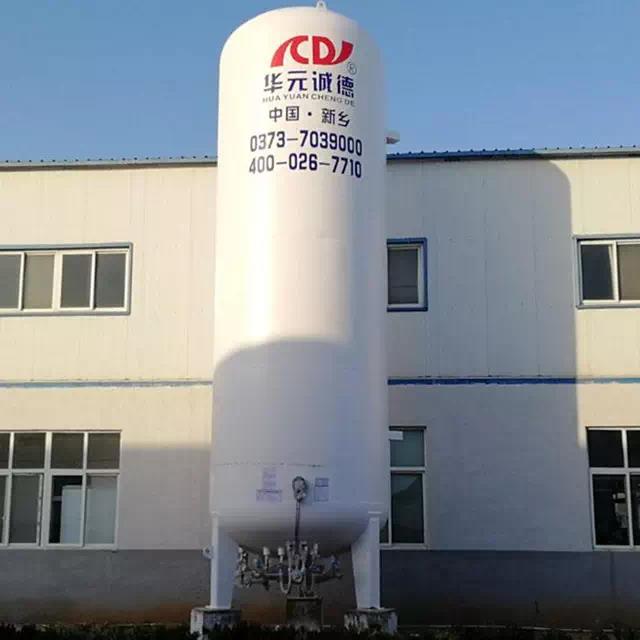

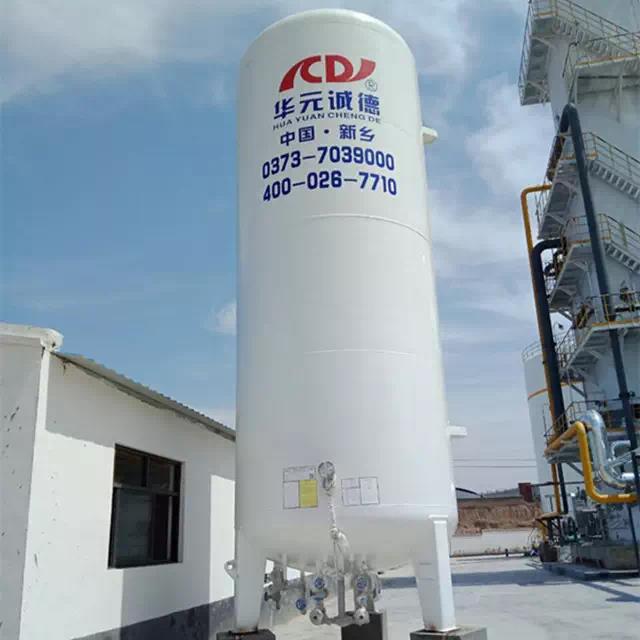

Cryogenic Storage Tank

Cryogenic Storage Tank

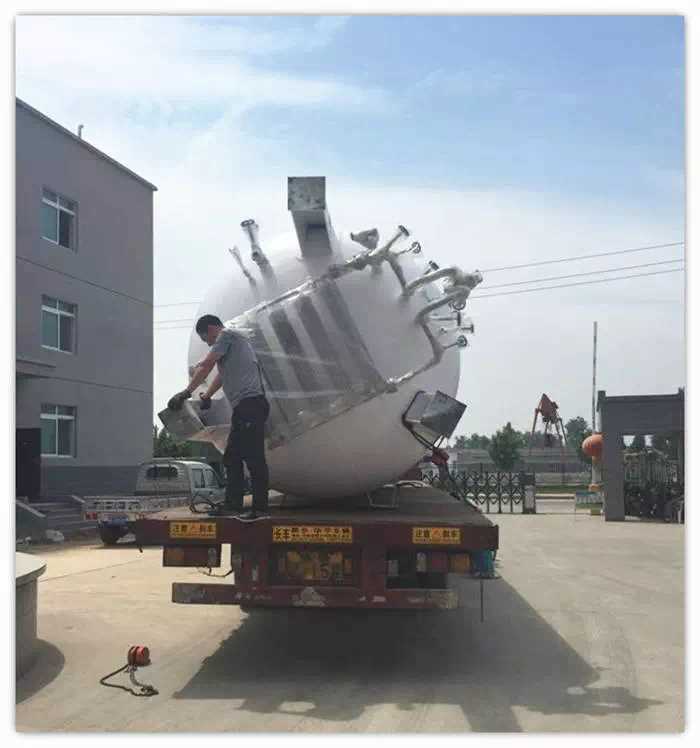

Packaging & Shipping
Packaging Detail: standard export package
Delivery Detail: 60 days after advance payment
Cryogenic Storage Tank
