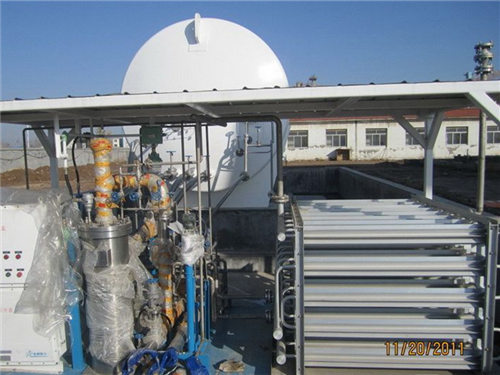

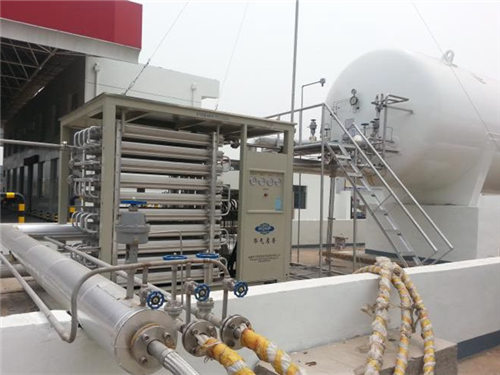

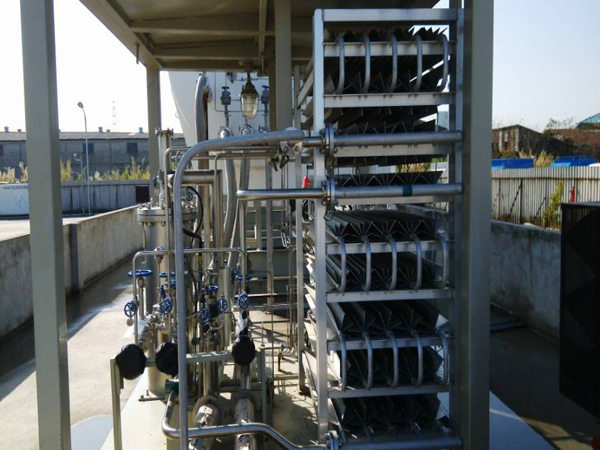

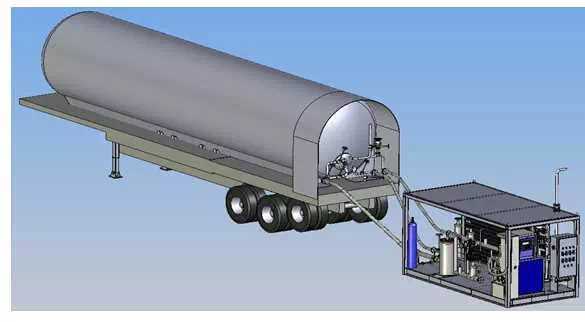

LNG filling station pump skid

LNG filling station pump skid is the integration of the integrated cryogenic liquid pumps,unloading supercharger,turbocharge tanks,heat and other complex skid-mounted products were tested before leaving the factory and deep cold commissioning.its main features are:cold loss,small footprint,centralized intelligent control,safe,reliable,and easy installation.

Send a E-mail to us!
Get Quotes

Products

  • Air Separation Unit
  • CO2 Recovery Plant
  • Cryogenic Storage Tanks
  • Flat Bottom Storage Tank
  • ISO Tank Container
  • LNG Marine Tank
  • Semi Trailer Tank
  • LPG Storage Tank
  • LNG Filling Station
  • LNG Filling Skid
  • Dewar Cylinder
  • Cryogenic Pump
  • Vaporizer
  • PSA System
  • Industrial Gas Cylinder
contact us
If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. thanks for your support.

Tel: +86-373-2677103
Fax: +86-373-2677103
WhatsApp: +86-17638186581
E-mail: sale@cncdtank-china.com
Address: Fengquan Industrial Zone, Xinxiang city, Henan Province China

  • Related products
  • Description
  • Inquiry
Related products
  • LNG Fuel And Power Systems
    LNG Fuel And Power Systems
  • LNG filling station
    LNG filling station
  • LNG refueling station
    LNG refueling station
Description
LNG filling station pump skid is the integration of the integrated cryogenic liquid pumps,unloading supercharger,turbocharge tanks,heat and other complex skid-mounted products were tested before leaving the factory and deep cold commissioning.its main features are:cold loss,small footprint,centralized intelligent control,safe,reliable,and easy installation.

Technical Parameter:
Item

Technical Parameters

Model LNG340/1.6Ⅰ LNG340/1.6Ⅱ LNG680/1.6
The number of immersed pump 1 1 2
Maximum capacity(L/Min) 340 340 680
Maximum power(KW) ≤15 ≤15 ≤25
Device size(mm) 5600*2500*2700 5600*2500*2700 6200*2500*2700
Working medium LNG
Working pressure(Mpa) 1.6
Working temperature(℃) -196
Equipment noise(DB) ≤55
Explosion proof grade DⅡBT4
Control mode PLC programmable automatic control
