Horizontal Large LNG Marine Fuel Tank

Product Description:

The company produces various types of Marine LNG fuel storage tanks certified by CCS, and complies with national standards GB/T150, GB18442 and CCS "Marine Application Of Natural Gas Fuel specification", and provides Marine LNG system integration equipment and skid-mounted products.The company can customize special types and special specifications of LNG powered Marine storage tanks and systems according to customer requirements.



Application:

 Products are widely applied to chemical, dyes, pharmaceuticals, pesticides, metallurgy, rare earth, machinery, electricity, electronics, environmental protection, textile, brewing, food, water supply, drainage and other industries.

Send a E-mail to us!
Get Quotes

Products

  • Air Separation Unit
  • CO2 Recovery Plant
  • Cryogenic Storage Tanks
  • Flat Bottom Storage Tank
  • ISO Tank Container
  • LNG Marine Tank
  • Semi Trailer Tank
  • LPG Storage Tank
  • LNG Filling Station
  • LNG Filling Skid
  • Dewar Cylinder
  • Cryogenic Pump
  • Vaporizer
  • PSA System
  • Industrial Gas Cylinder
contact us
If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. thanks for your support.

Tel: +86-373-2677103
Fax: +86-373-2677103
WhatsApp: +86-17638186581
E-mail: sale@cncdtank-china.com
Address: Fengquan Industrial Zone, Xinxiang city, Henan Province China

  • Related products
  • Description
  • Inquiry
Related products
  • T50 LPG ISO Tank Container
    T50 LPG ISO Tank Container
  • LNG Fuel Semi Trailer
    LNG Fuel Semi Trailer
  • PSA Oxygen Generator
    PSA Oxygen Generator
Description

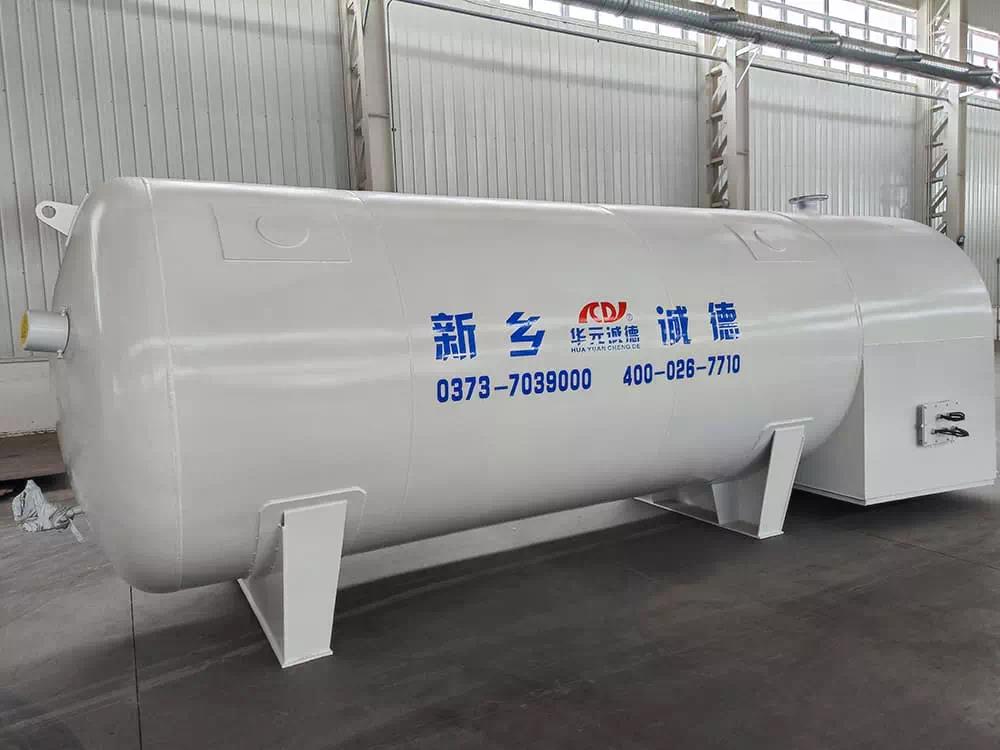

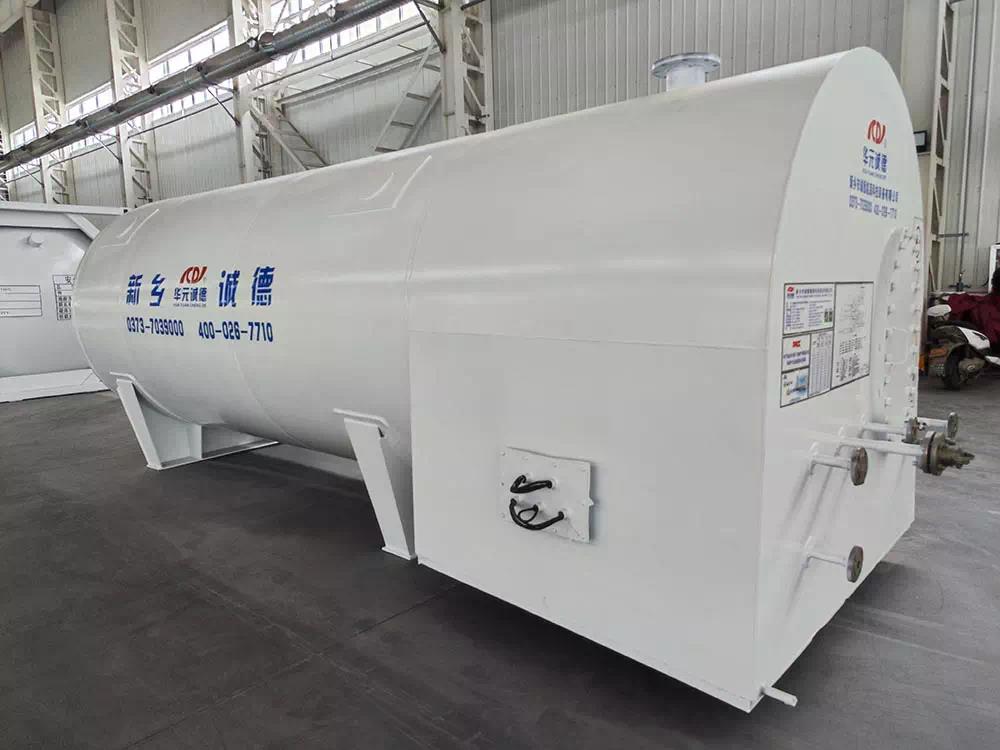

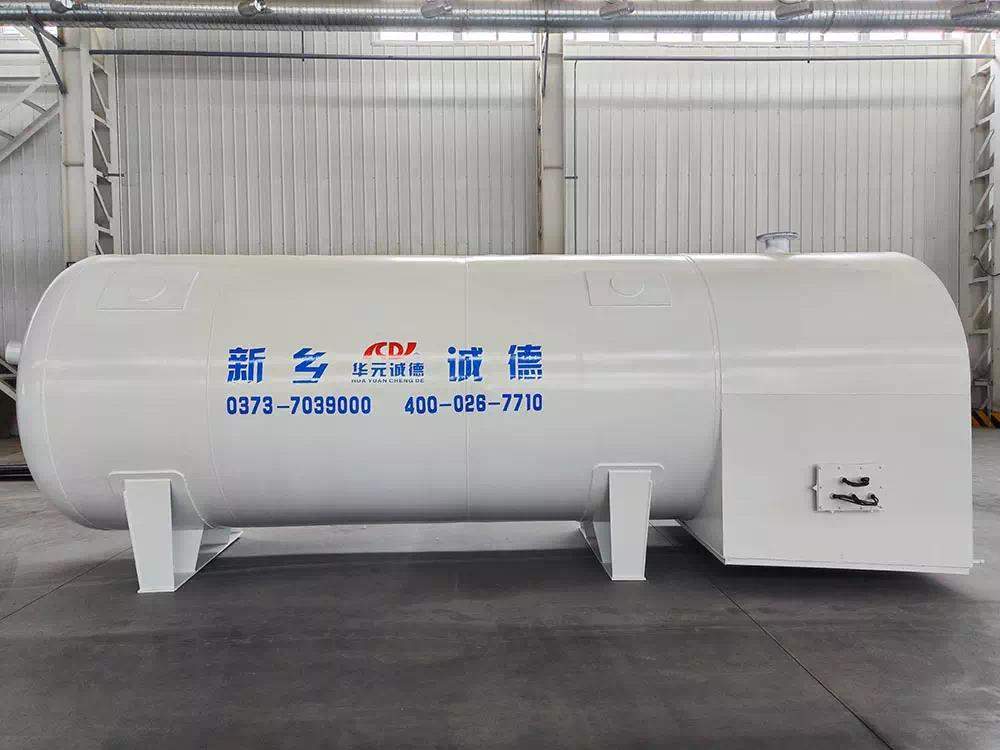

Industrial Stainless Steel Horizontal Large Lng Marine Fuel Tank

Product Description:

The company produces various types of Marine LNG fuel storage tanks certified by CCS, and complies with national standards GB/T150, GB18442 and CCS "Marine Application Of Natural Gas Fuel specification", and provides Marine LNG system integration equipment and skid-mounted products.The company can customize special types and special specifications of LNG powered Marine storage tanks and systems according to customer requirements.



Product features:

(1) The storage tank adopts a top out liquid structure, with no risk of low-temperature liquid leakage; (2) The shell is made of carbon steel material, which saves material costs; (3) By using this top discharge liquid storage tank, there is no need to set up a pump tank in the system, and there is no pump tank return pipeline, making the system more concise and safe; (4) This top out liquid storage tank can eliminate the need for cold boxes and cofferdams in the system, reduce the space occupied by the system, and also avoid cracking of the cement cofferdam due to deck deformation; (5) The pump is placed inside the storage tank, without the need for pre cooling, and the pump operates stably, saving filling time; (6) The top of the storage tank is equipped with a pump inlet and outlet well, and the pump can be maintained in the future; (7) This top out liquid storage tank can reduce the overall construction cost of the barge LNG refueling system by about 20%, and reduce the system's BOG volume by 40%;



Technical Parameter:

Model Volume (m³) Working pressure (Mpa)  Filling rate Dimension(mm)
CFW-3.5/P 3.5













0.8

1.0

1.2

















90%

1900x2150x3850
CFW-5/P 5 2000x2250x4220
CFW-5/P 5 1800x2025x4220
CFW-8/P 8 2100x2350x5510
CFW-8/P 8 1900x2150x5510
CFW-10/P 10 2100x2350x6610
CFW-10/P 10 1900x2150x6620
CFW-15/P 15 2500x2750x6480
CFW-20/P 20 2600x2850x7490



Cryogenic Storage Tank

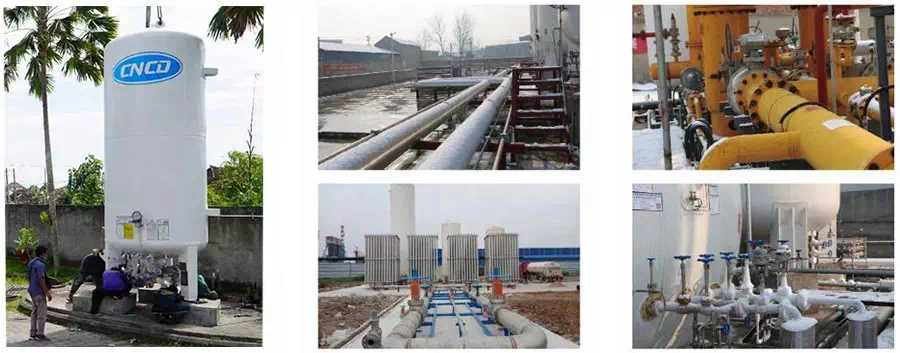

Field Installation:

Our company have the design and installation qualification of GB1, GC2 and GC3 pressure pipeline which can supply customers with professional pressure pipeline solutions.

Pressure pipeline design,installation in spection, certification, transformation, maintenance one-stop service fast, professional, efficient and safe to solves problems, ask user rest assured, relax and comfortable.



Technical Support:

Technical-Support
