Thechnical Summary:

1. Can provide different code based on user requirement: GB/ ASME/CE certificate

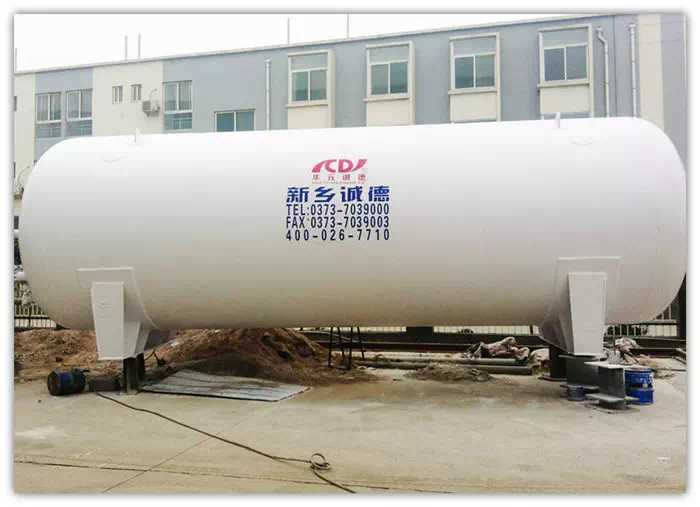

2. Can be horizental or Vertical based on jobsite condition

3. Can special design based on stationary tank or movable tank or skid based on user funtion

4. Vacuum guarantee: 3 years

5. Complet equipment guarantee: one year



Product Description

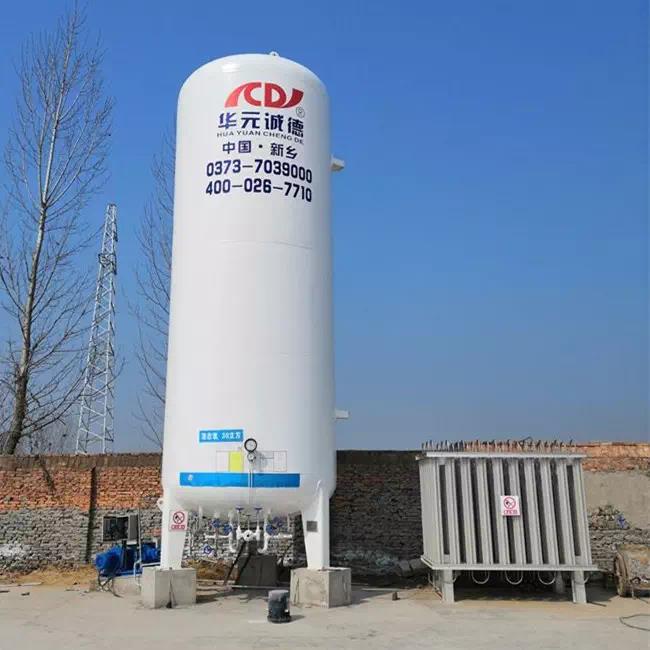

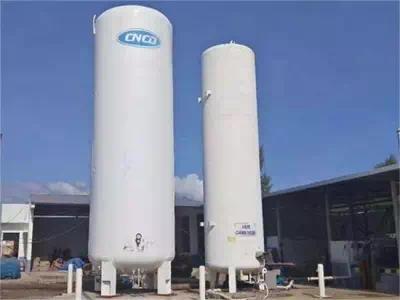

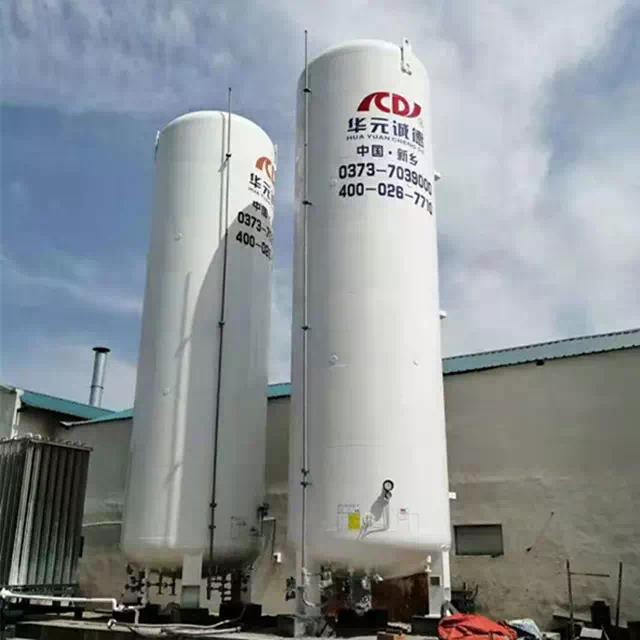

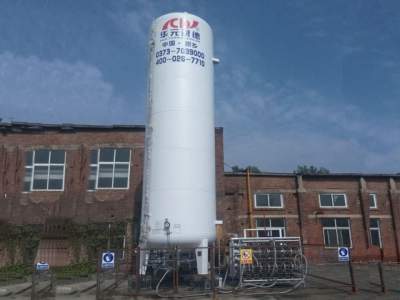

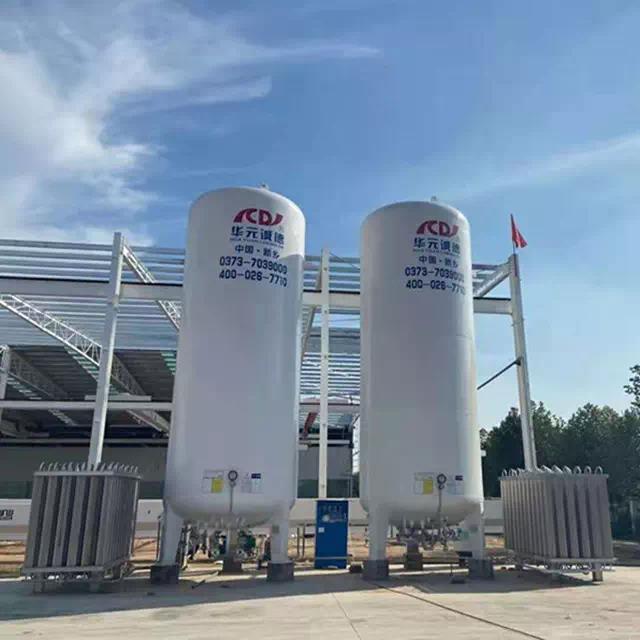

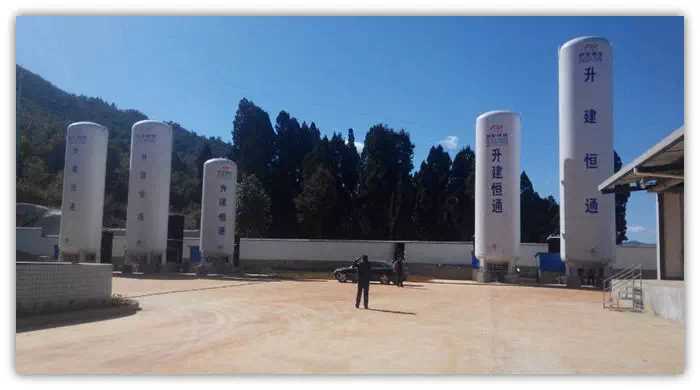

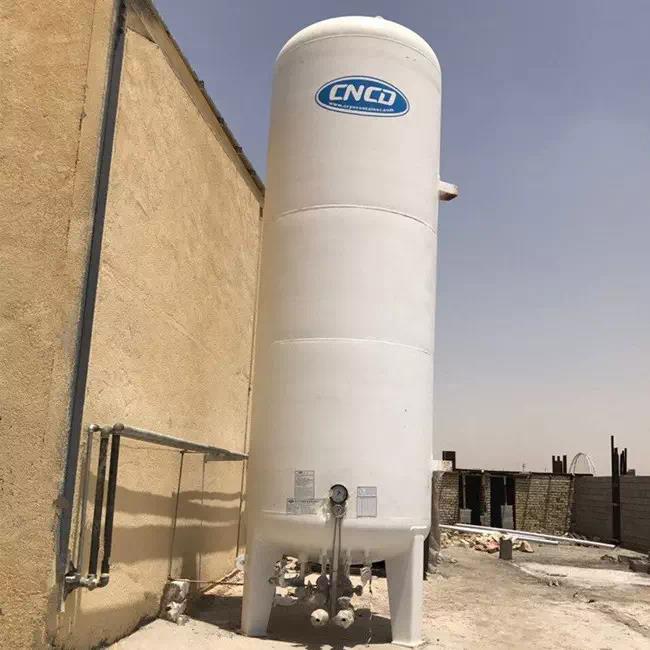

 This liquid carbon dioxide storage tank includes vacuum powder insulation storage tank and polyurethane insulation storage tank.This vertical  type tank is used to store carbon dioxide. The tank has many features such as  long lifespan, compact structure, and less occupied area. We can also design products according to users' demands.





Main technical parameter:

1	Available max. volume	50m3
2	working pressure	2.16Mpa
3	Design temperature	-40°C
4	Design  pressure	2.27Mpa
5	Total Volume	53 m3
6	Effective volume	50 m3
7	Filling Ratio	0.95
8	Inner tank Material	16MnDR
9	Outside tank Material	Q245R
10	Diameter	3200mm
11	Length	11300mm
12	Empty weight	26097kg
13	Suitable	Lco2
14	Insulation method	vacuum powder or polyurethane insulation
15	Medium	Liquid carbon dioxide

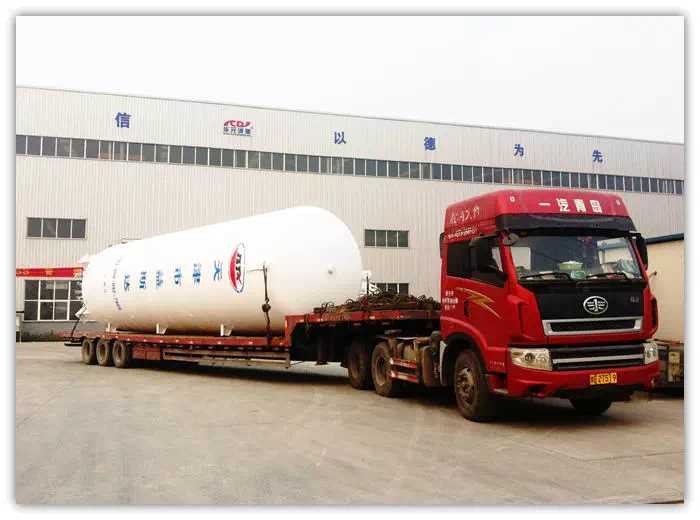

Packaging & Shipping

Packaging Detail: standard export package

Delivery Detail: 60 days after advance payment
