Thechnical Summary:

1. Can provide different code based on user requirement: GB/ ASME/CE certificate

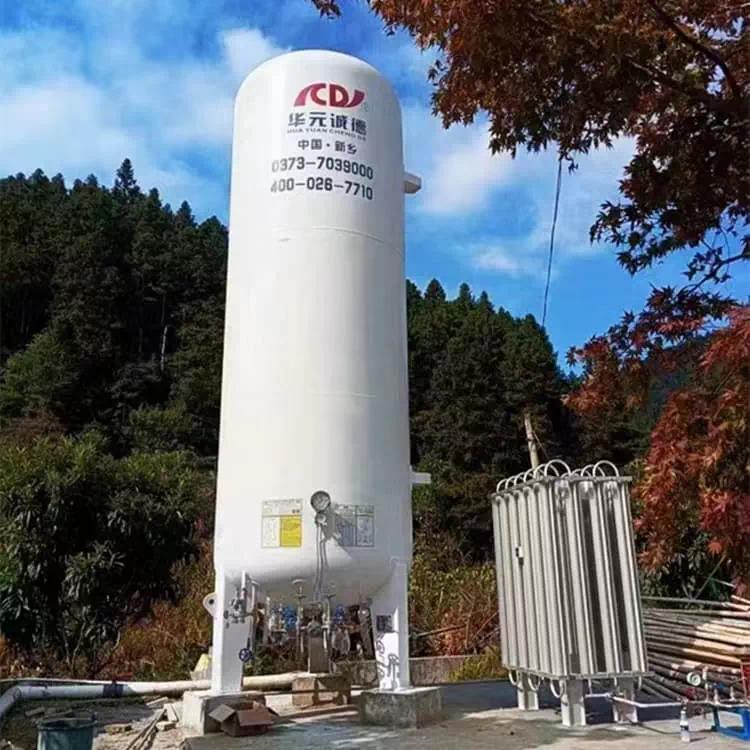

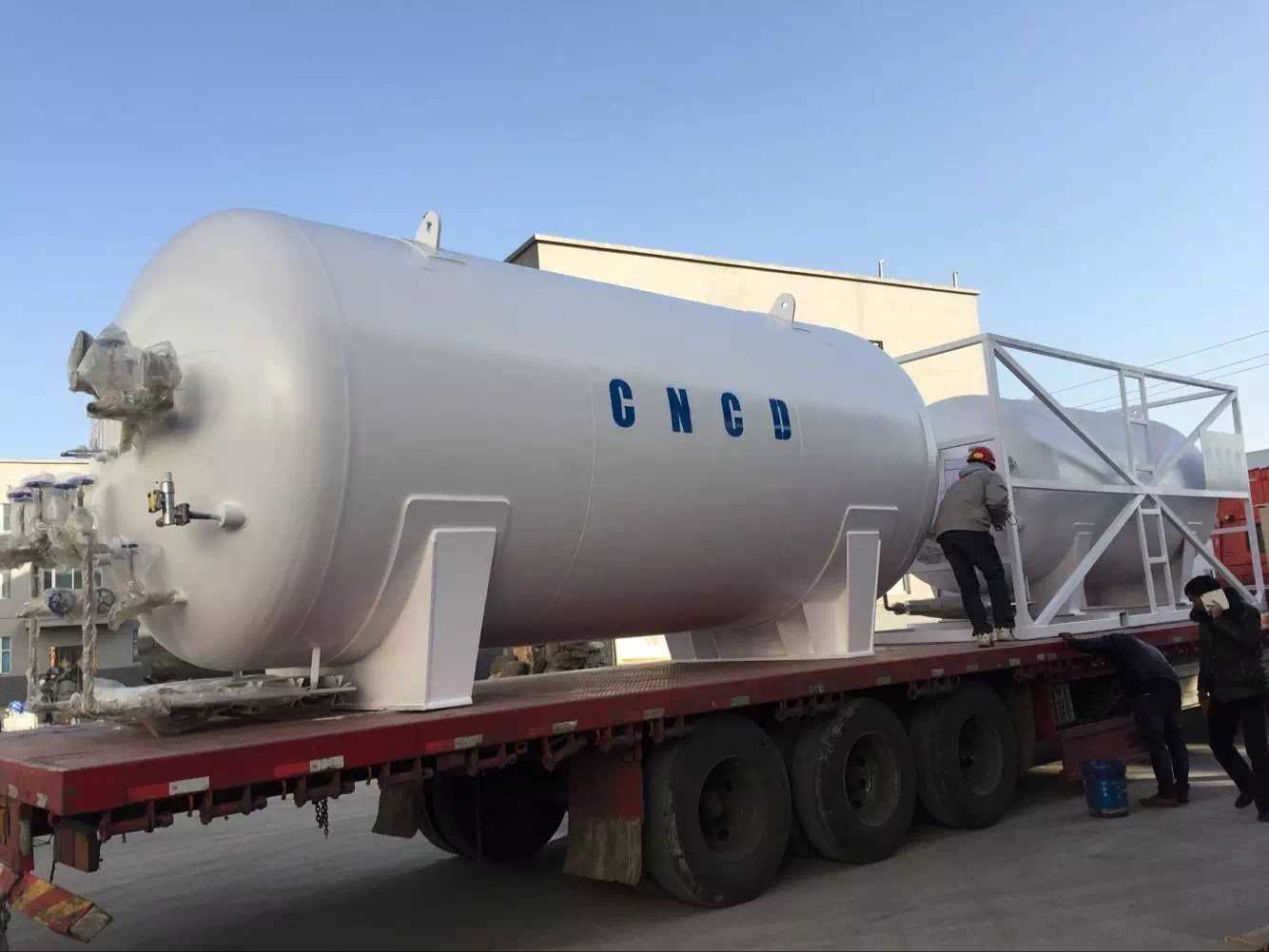

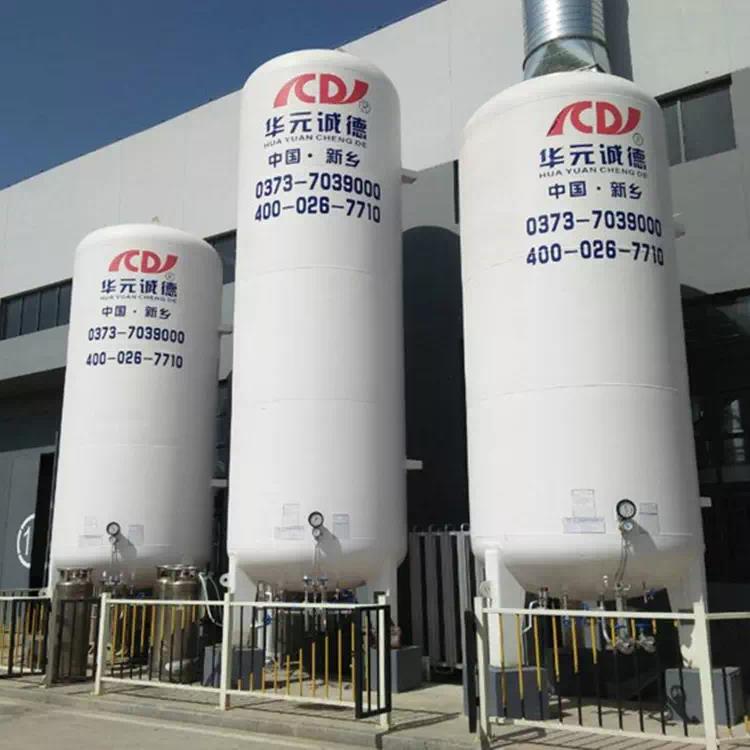

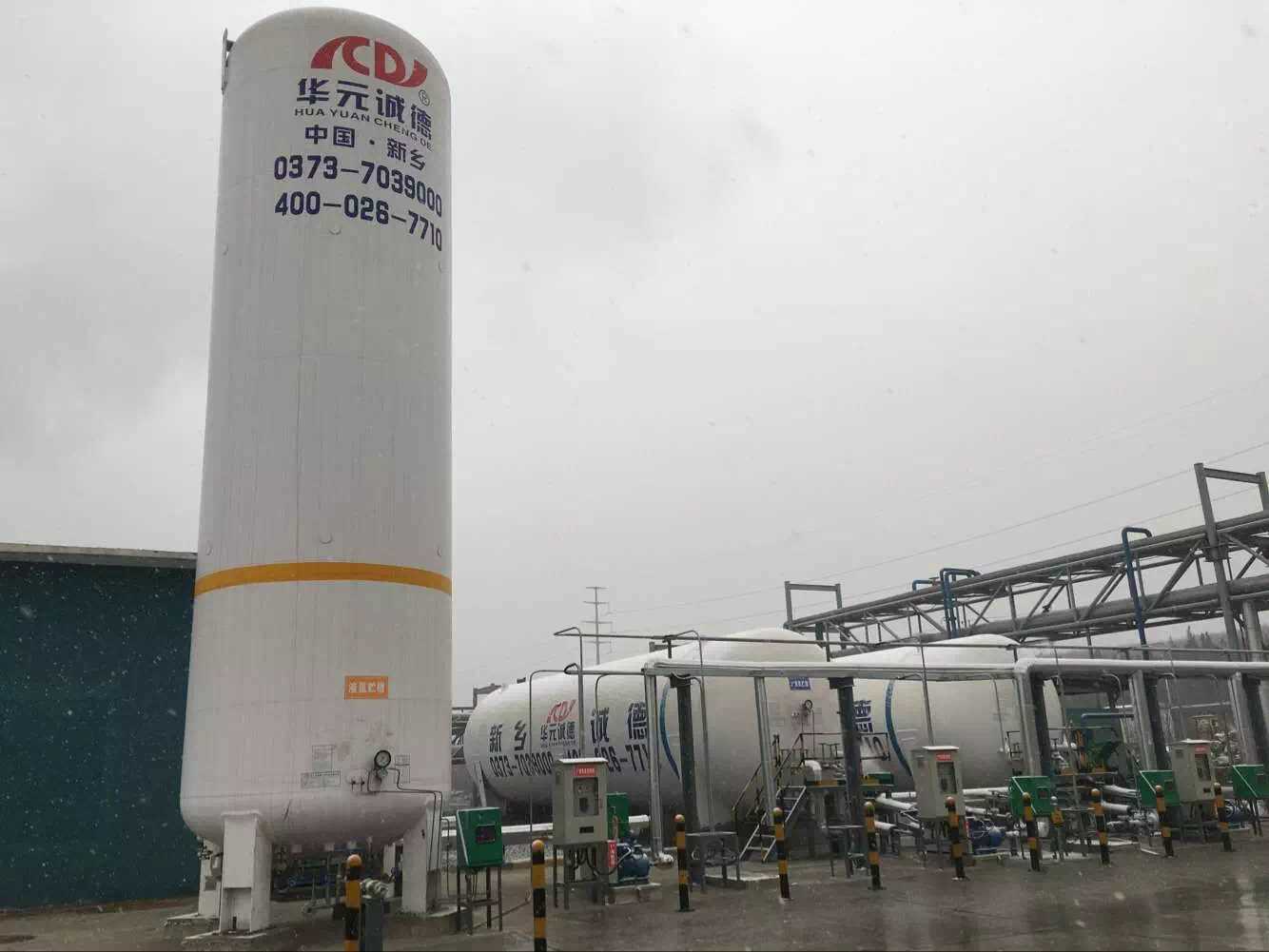

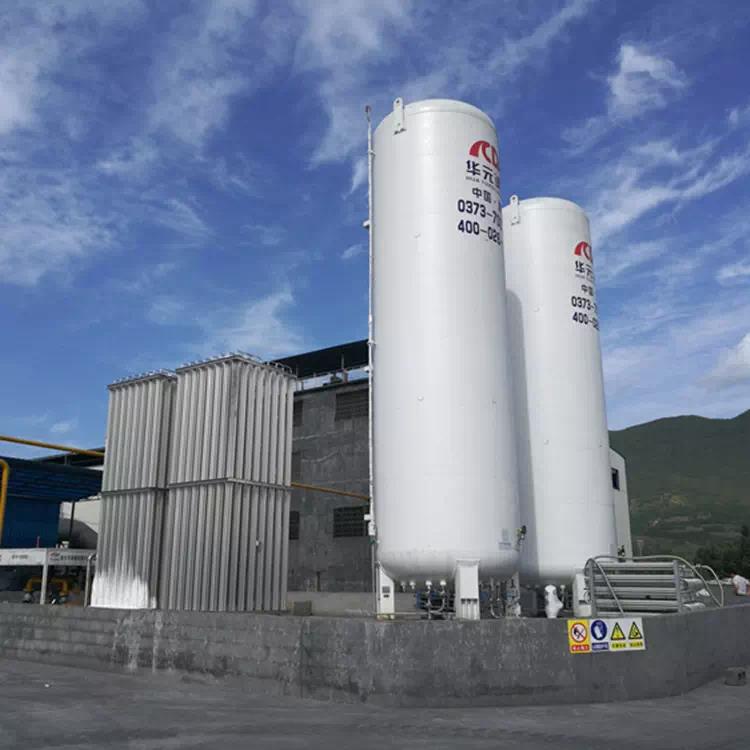

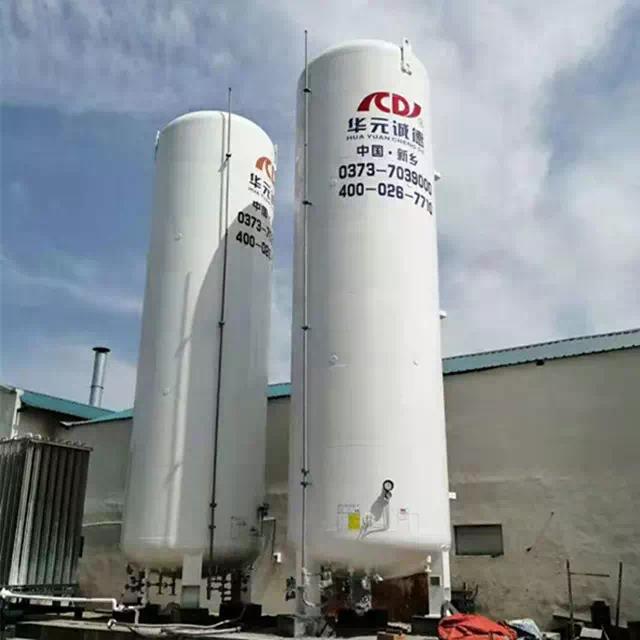

2. Can be horizental or Vertical based on jobsite condition

3. Can special design based on stationary tank or movable tank or skid based on user funtion

4. Vacuum guarantee: 3 years

5. Complet equipment guarantee: one year



Product Description

Located in the Gaowan industrial area of Xinxiang, Henan province, Xinxiang Chengde Gas Equipment Co., Ltd. enjoys the convenient transport system and picturesque scenery, with its south to the yellow river and north to the Taihang Mountain. Our company devotes itself to the manufacturing of pressure vessel, cryogenic treatment, gas equipment and so on and owns the manufacturing license of special equipment A2 class pressure vessel, the design license of D1/D2 class pressure vessel, installation permit of GC2/GC3 class pressure pipeline issued by the State Administration of Quality Supervision Inspection and Quarantine. Meanwhile, we undertake the production and installation of first, second, and third class medium and low pressure vessel. Our main products include: cryogenic liquid storage tank, cryogenic insulated cylinder, cryogenic liquid pump, cryogenic fluid-conveying pipe, vaporizer, gas pressure regulating equipment, gas filling and emitting equipment, etc.

1	Available max. volume	20m3
2	working pressure	8bar,16bar
3	Min Design temperature	-196°C
4	Max Design temperature	+50 °C
5	Total Volume	21.6m3
6	Effective volume	20m3
7	Filling Ratio	0.95
8	Inner tank Material	0Cr18Ni9
9	Outside tank Material	Q245R
10	Diameter	2600mm
11	Length	7880mm
12	Empty weight	~11770kg
13	Suitable	LIN, LOX, LAr,LNG
14	Insulation method	vacuum powder or high vacuum multi-layer wrap insulation
15	Medium	liquid argon/ nature gas/ oxygen/nitrogen/ethylene

Packaging Detail: standard export package

Delivery Detail: 60 days after advance payment
