10m³ cryogenic nitrogen tank vessel

This series of products belong to the first, second and third class of pressure vessel production.Its design ,manufacturing, inspection and acceptance examination are strictly under the accordance with Steel Pressure Vessel, GB150; Cryogenic Adiabatice Pressure Vessel Gb18442 and Pressure Vessels Safety and Technical Supervision Regulation.


TAG:   cryogenic nitrogen tank vessel CNCD
Send a E-mail to us!
Get Quotes  ( Click this button to inquiry )

Products

  • Cryogenic tank
  • Large cryogenic Flat Bottom Tank
  • LNG Marine tank
  • LPG tank
  • LNG filling station
  • LNG filling skid
  • Cryogenic pump
  • Vaporizer
  • Liquid nitrogen tank
  • Dewar cylinder
  • Air Separation Unit
  • ISO Container
  • LPG cylinder
  • LPG Vaporizer
  • Industrial gas cylinder
  • Gas pressure regulator
If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. thanks for your support.

Tel: +86-15837392368
Fax: +86-373-2677103
E-mail: chengde@cryocontainer.com
Address: Fengquan Industrial Zone, Xinxiang city, Henan Province China

  • Description
  • Inquiry
  • Related products
Description
Thechnical Summary:
1. Can provide different code based on user requirement: GB/ ASME/CE certificate
2. Can be horizental or Vertical based on jobsite condition
3. Can special design based on stationary tank or movable tank or skid based on user funtion
4. Vacuum guarantee: 3 years
5. Complet equipment guarantee: one year

Product Description
This series of products belong to the first, second and third class of pressure vessel production.Its design ,manufacturing, inspection and acceptance examination are strictly under the accordance with Steel Pressure Vessel, GB150; Cryogenic Adiabatice Pressure Vessel Gb18442 and Pressure Vessels Safety and Technical Supervision Regulation.

The cryogenic liquid storage products includes double layer, with both vertical and horizontal structure and evacuated powder insulation, featuring a compact structure, small size, low daily vaporizing rate, and central controlling. They are reliable and easy to operate and maintain.

 Main technical parameter:
1 Available max. volume 10m3
2 working pressure 8bar,16bar or as customer requirement
3 Min Design temperature -196°C
4 Max Design temperature  +50 °C
5 Total Volume 10.53 m3
6 Effective volume 10m3
7 Filling Ratio 0.95
8 Inner tank Material 0Cr18Ni9
9 Outside tank Material Q245R
10 Diameter 2300mm
11 Length 5750mm
12 Empty weight 6395kg
13 Suitable LIN, LOX, LAr,LNG
14 Insulation method vacuum powder or high vacuum multi-layer wrap insulation
15 Medium liquid argon/ nature gas/ oxygen/nitrogen/ethylene

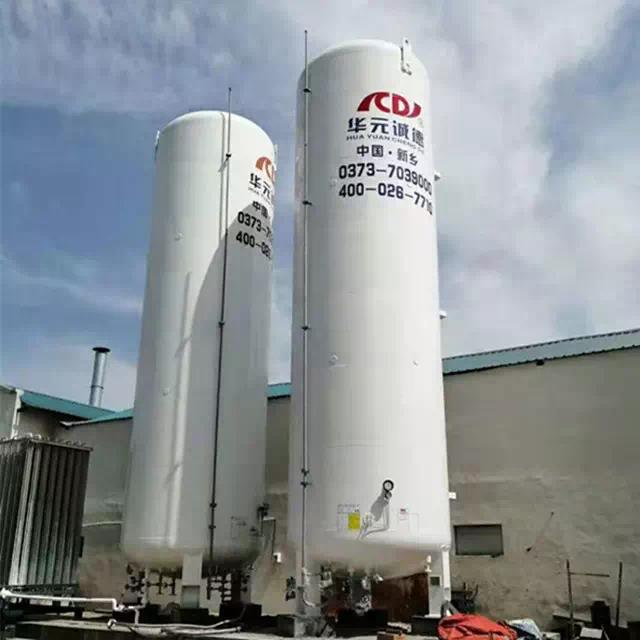

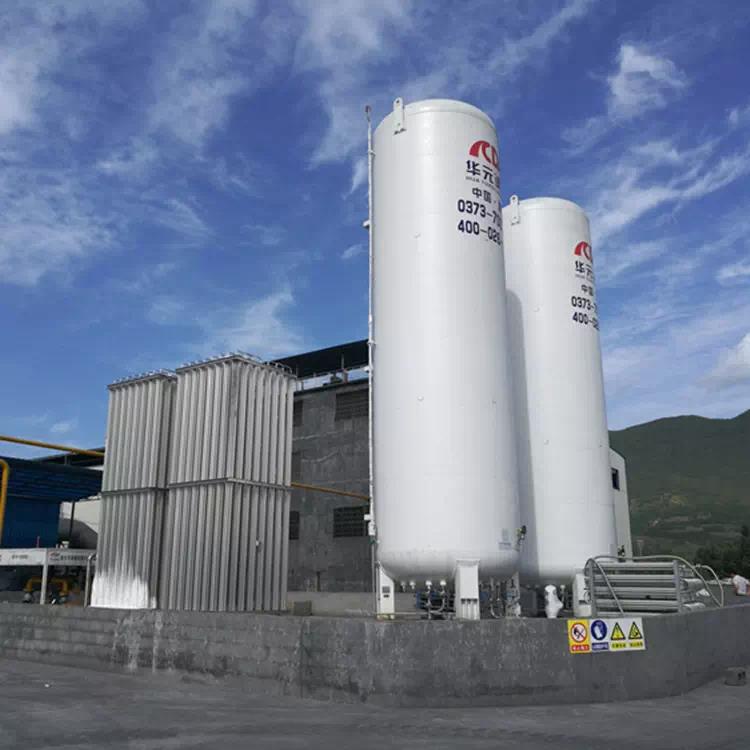

Storage tank

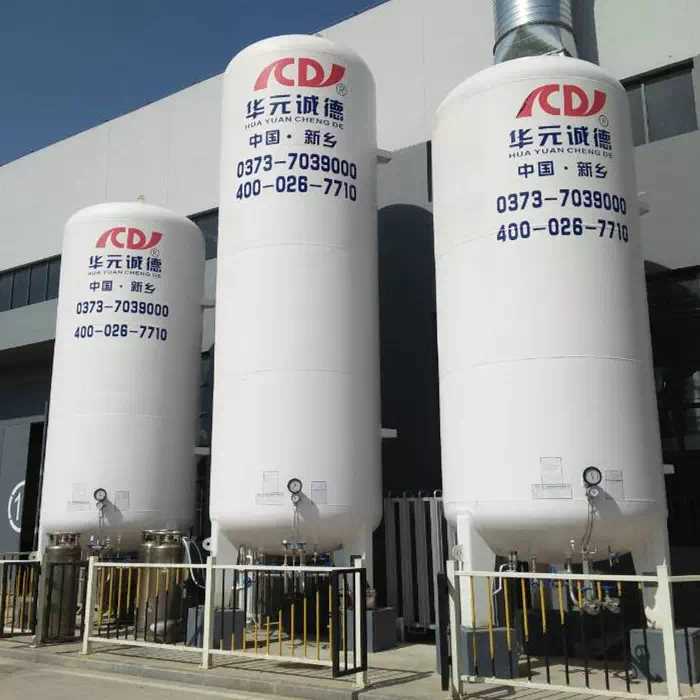

Storage tank

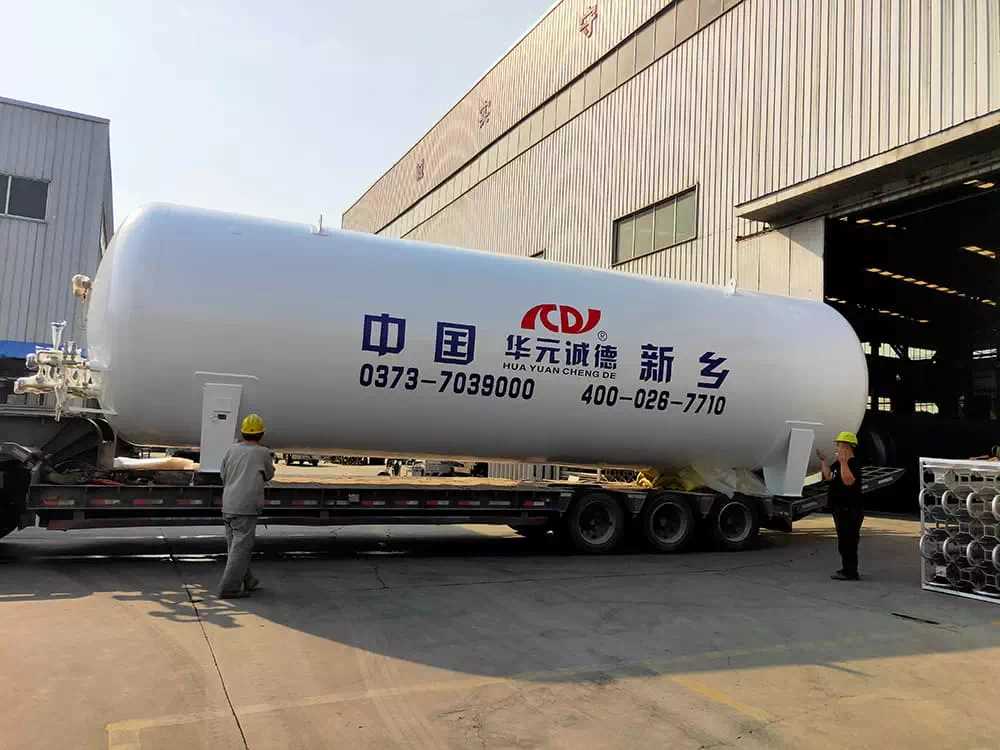

 Packaging & Shipping
Packaging Detail: standard export package
Delivery Detail: 60 days after advance payment

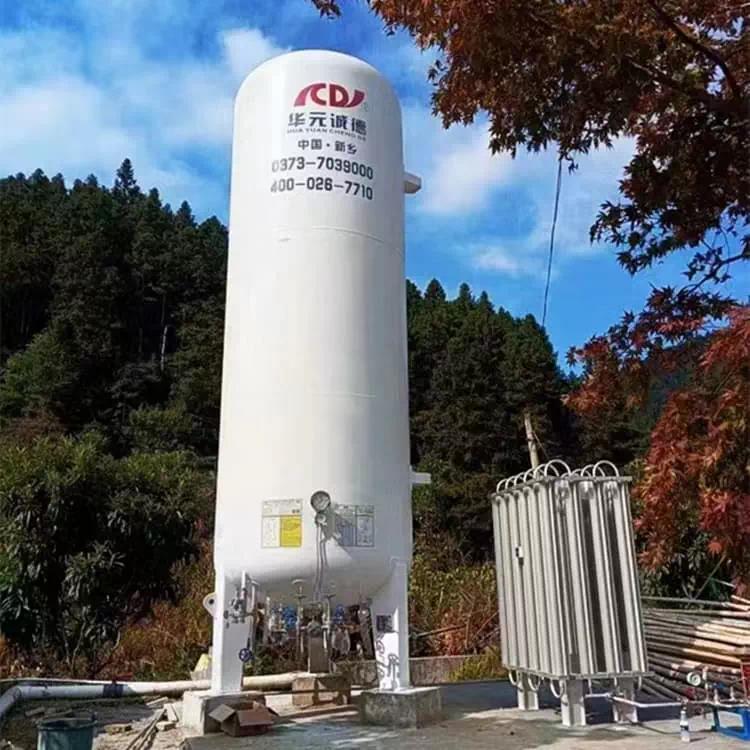

Storage tank

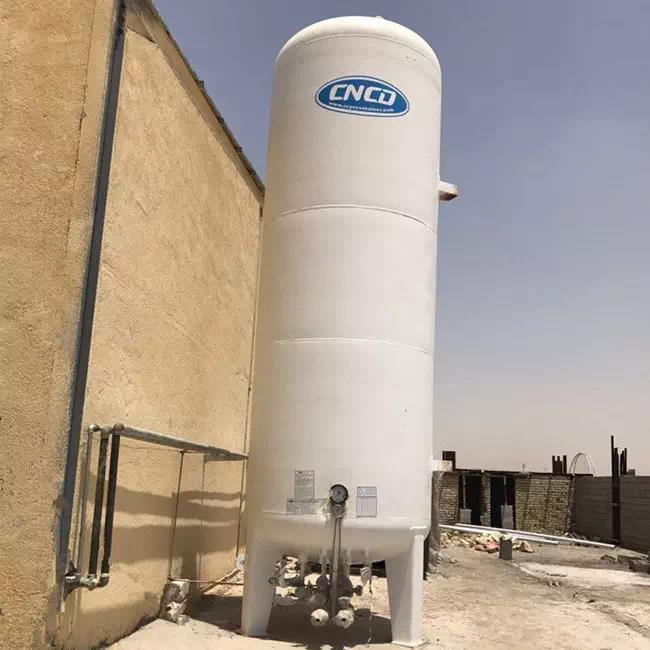

Storage tank

                                                                               Storage tank
