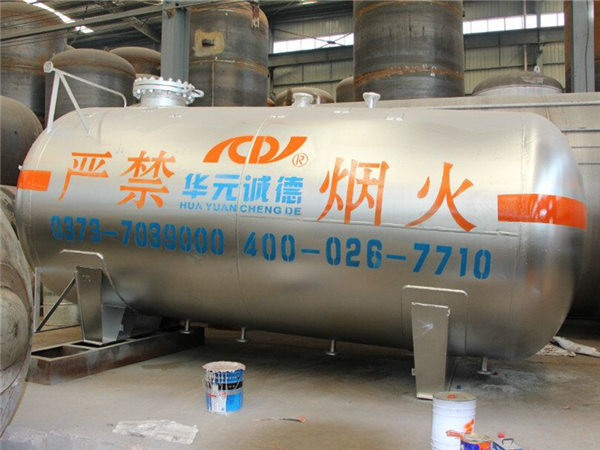

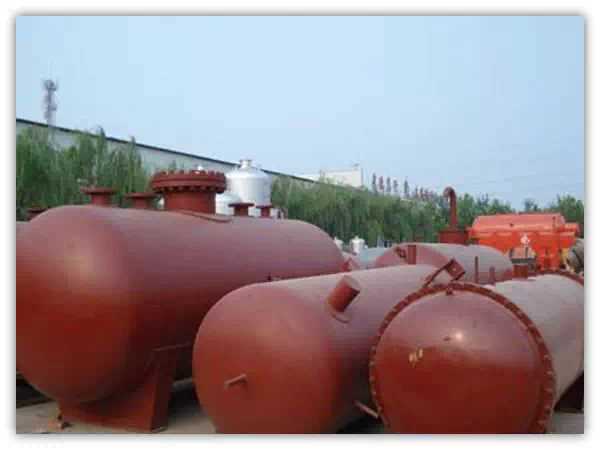

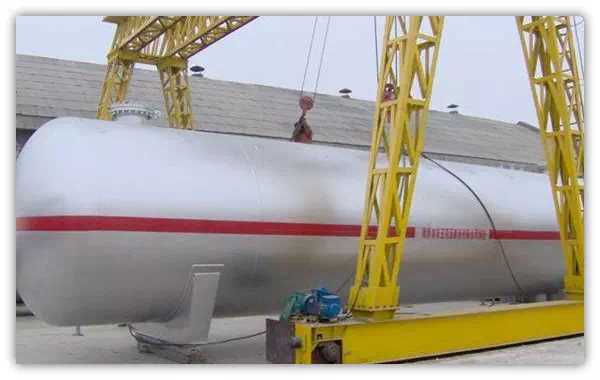

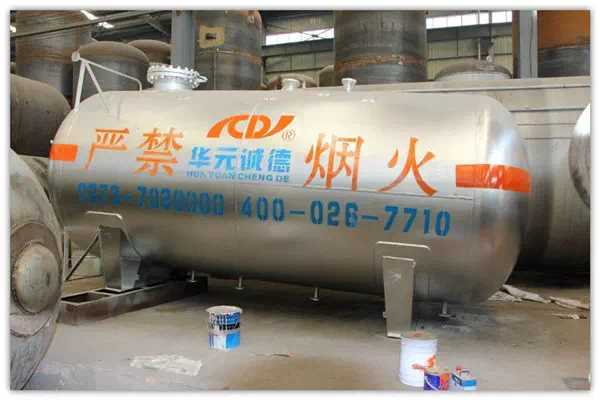

LPG storage tank
LPG storage tank is the stationary vessel to store LPG and widely used in various industries. We can provide different capacity and standard storage tank. It is designed according to new regulation with high safety performance and long durable time.
Get Quotes ( Click this button to inquiry )
Products
If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. thanks for your support.
Tel: +86-15837392368
Fax: +86-373-2677103
E-mail: chengde@cryocontainer.com
Address: Fengquan Industrial Zone, Xinxiang city, Henan Province China
LPG storage tank is the stationary vessel to store LPG and widely used in various industries. We can provide different capacity and standard storage tank. It is designed according to new regulation with high safety performance and long durable time.
Optimize the LPG tank according to the tank capacity to make the tank of best structure and reduce the material.
The tightness between the valve and the flange is good to enhance the safety performance.
The pressure gauge adopts flange connection and is not easy to damage when replacing.
LPG TANK
Designed and manufactured according to AD 2000 standart (Markblatter).
Sand Blasted according to SA 2,5.
Epoxy paint min. 250 micron.
Material P 355 NH ( WSTE 355)
On the top sun shield and spring system for high temperature.
Heads are stress relieved at 620 C.
Test pressure 25 bar.

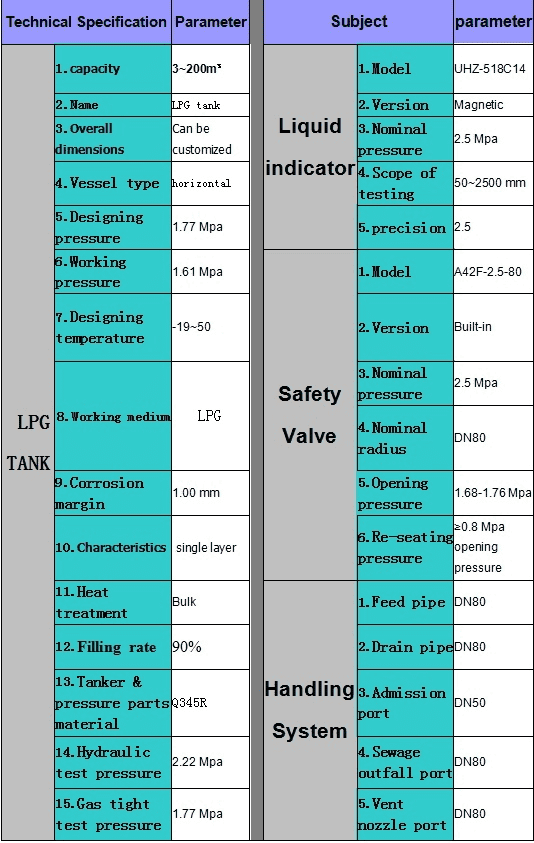

Parameter of the LPG storage tank
| Item | Parameter | |||||||
| Tank | Description of LPG tank | 50CBM LPG storage tank | ||||||
| Overall dimensions (mm) | 11508*2428*3018 | |||||||
| Curb weight(kg) | 11140 | |||||||
| Filling weight(kg) | 19950 | |||||||
| Type of vessel | The third kind | |||||||
| Design pressure | 1.77MPa | |||||||
| Max working pressure | 1.61MPa | |||||||
| Design temperature | -19~50℃ | |||||||
| Filling medium | Liquid petroleum gas (propane) | |||||||
| Corrosion allowance | 1.0mm | |||||||
| Volume | 50 CBM | |||||||
| Thermal treatment | The entirety | |||||||
| Filling capacity | 420~450kg/CBM | |||||||
| Material of the tank | Q345R | |||||||
| Hydraulic test pressure | 2.22 M Pa | |||||||
| Gas tight test pressure | 1.77 M Pa | |||||||
| Cylinder thickness | 14mm | |||||||
| Head thickness | 14mm | |||||||
| Service time | 10 years | |||||||
| Accessory for the LPG storage tank | ||||||||
| Liquid level indicator | Type | UNZ-518C14 | ||||||
| Version of the indicator | Magnetic type liquid level indicator | |||||||
| Normal pressure | 2.5M Pa | |||||||
| Scope of testing | 50-2300mm | |||||||
| Precision | 2.5 | |||||||
| Safety valve | Model | A42F-2.5-80 | ||||||
| Version | Built-in | |||||||
| Normal pressure | 2.5 M Pa | |||||||
| Normal diameter | DN80 | |||||||
| Opening pressure | 1.68~1.76M Pa | |||||||
| Re-seating pressure | more than 0.8 times of the opening pressure | |||||||
| Loading and unloading system | Normal diameter | Feed pip | DN50 | |||||
| Drain pip | DN50 | |||||||
| Admission port | DN50 | |||||||
| Sewage outfall port | DN50 | |||||||
| Vent nozzle port | DN50 | |||||||
| Standard |
GB150 |
|||||||
| Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | |||||||
| Specification |
Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50℃ Corrosion Allowance: 1mm |
|||||||
